Product type：Graphic LCD Module
Show contents：128x64
Outline size(mm) ：39.0x40.8x6.2
Size of View Window(mm)：36x23.5
Display size(mm) ：33.25x20.45
Point spacing(mm)：0.32x0.26
Product application：Instruments
Visual angle：6H
Backlight type or brightness：YG
Connection PIN Number：12PIN
Interface mode：SPI
Special instructions：Anti-static ESD 8KV
Working temperature：-40~70℃
Power supply voltage：3.3V
Driver chip model：ST7567

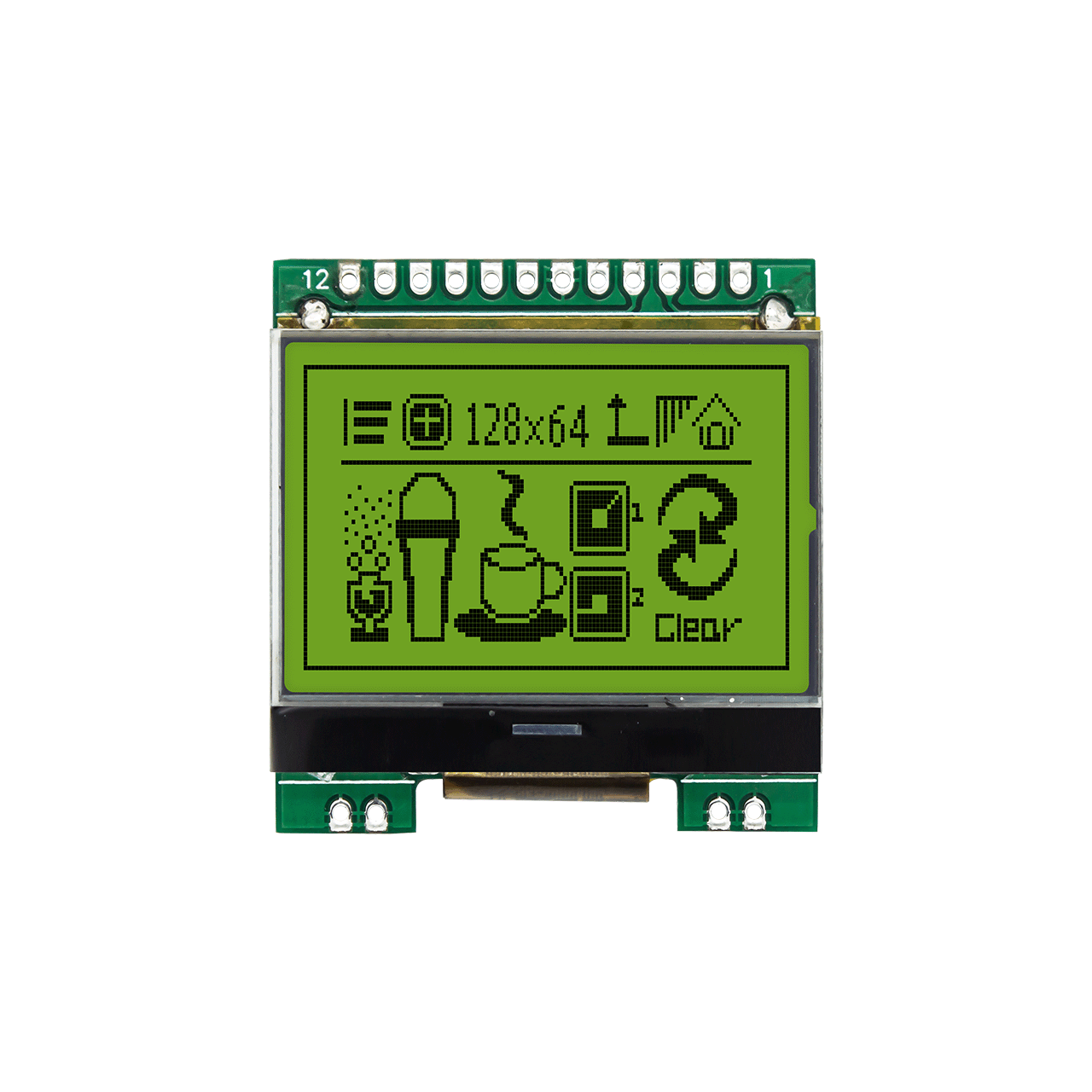

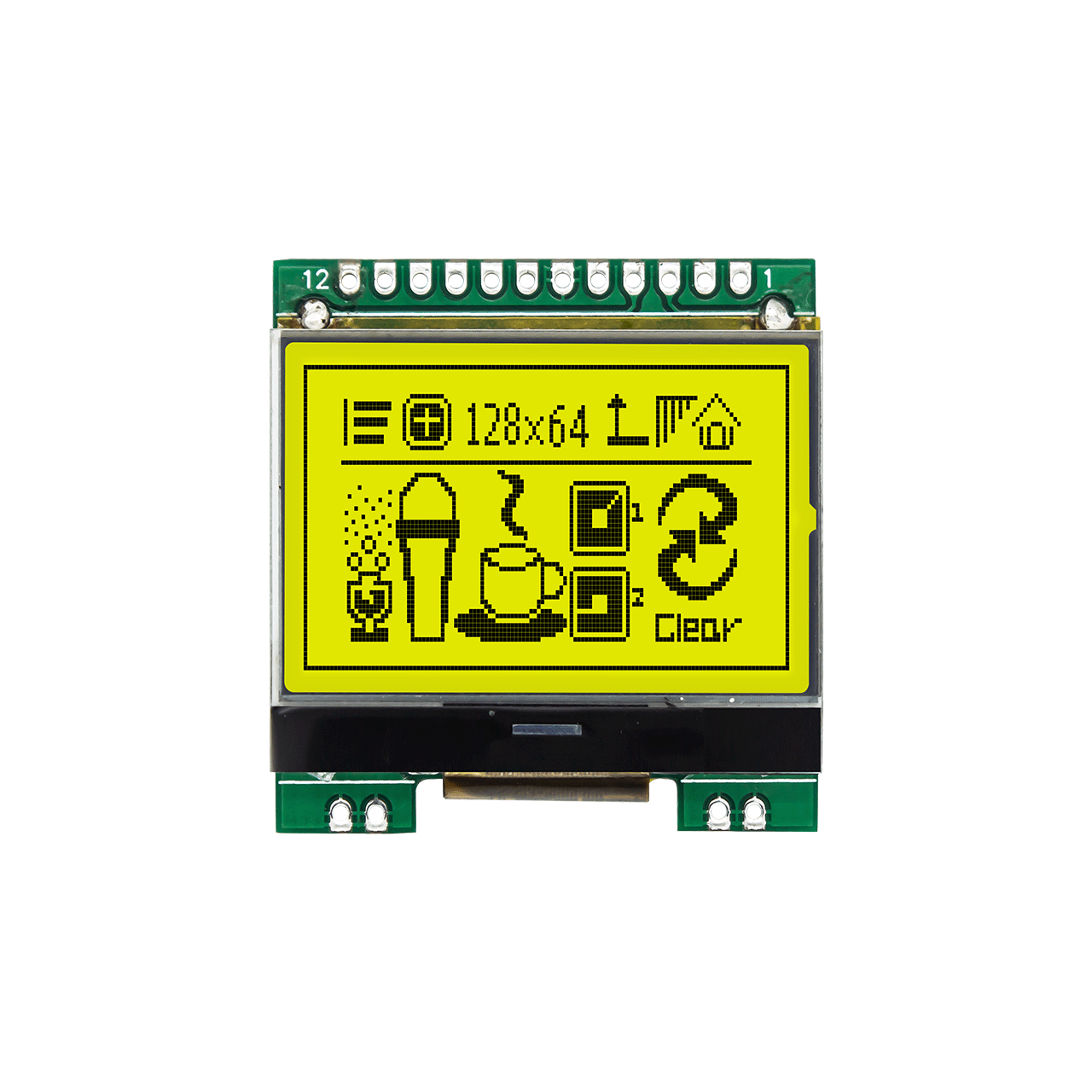

This HOISOLAY 128x64 LCD graphics module displays deep black pixels on a bright yellow-green background. This reflective LCD monitor is designed to provide optimal visibility in a variety of lighting conditions and in a variety of environments. In bright sunlight, the display uses its reflective layer to reflect ambient light back to the viewer, making the screen easier to read. In darker environments, LCD monitors have powerful backlights that provide high contrast and display clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of lighting conditions.

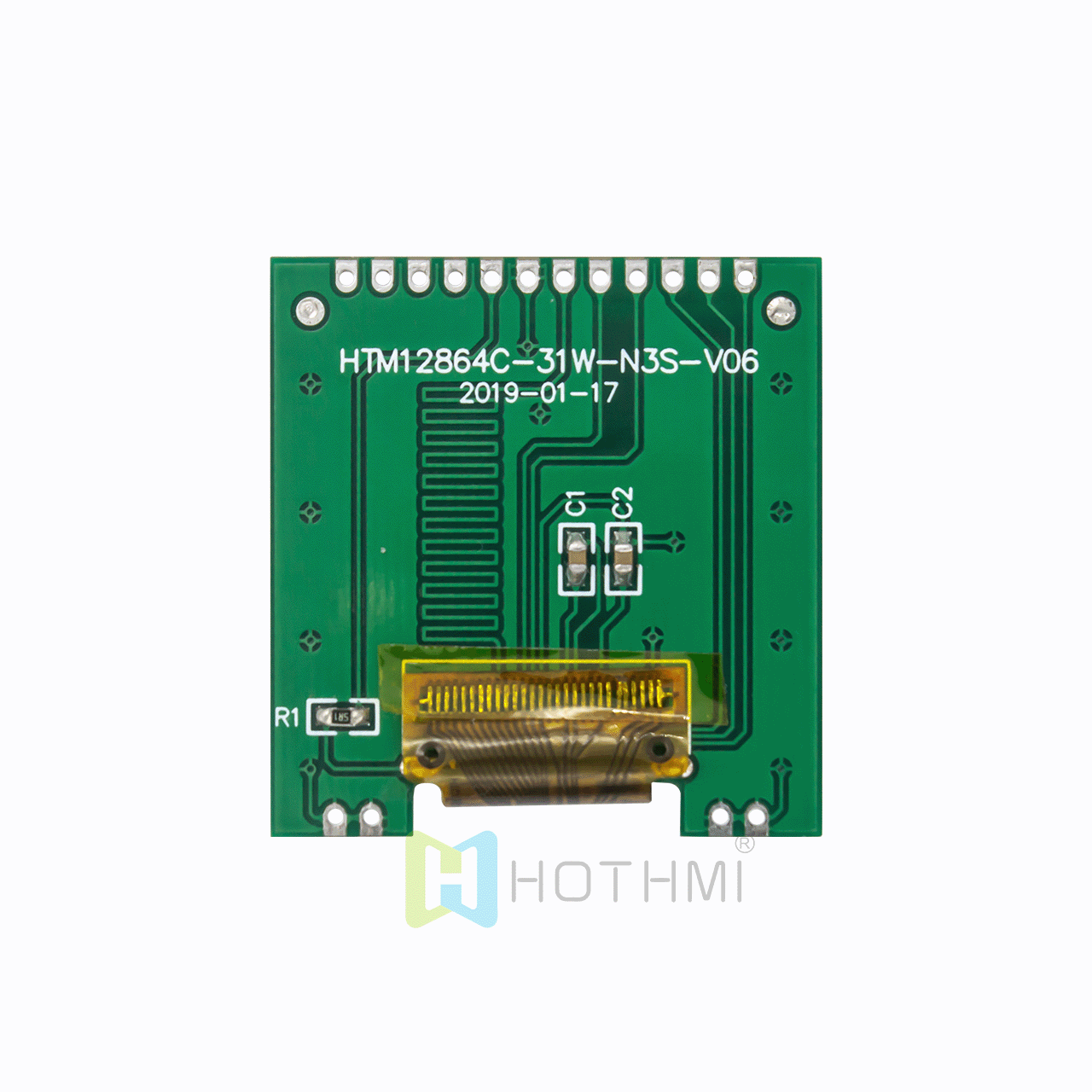

This LCD graphics module is fully compatible with Arduino and can be seamlessly connected with other electronic systems and suitable for various applications. The HTM12864C-31W-N3S-V06 model is designed to withstand harsh operating conditions and performs well when used in a temperature range of -40 to 70 degrees Celsius. Design and install heating elements that operate at ultra-low temperatures. This LCD display has an ideal viewing angle of 6:00, an operating voltage of 3.3V, and is RoHS compliant.
