Product type：COG
Show contents：128x64
Outline size(mm) ：53.2x37.8x2.8
Size of View Window(mm)：49.2x27.0
Display size(mm) ：40.92x24.28
Point spacing(mm)：0.38x0.32
Product application：Instruments
Visual angle：6H
Backlight type or brightness：YG
Connection PIN Number：FPC-28PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3 V
Driver chip model：ST7567

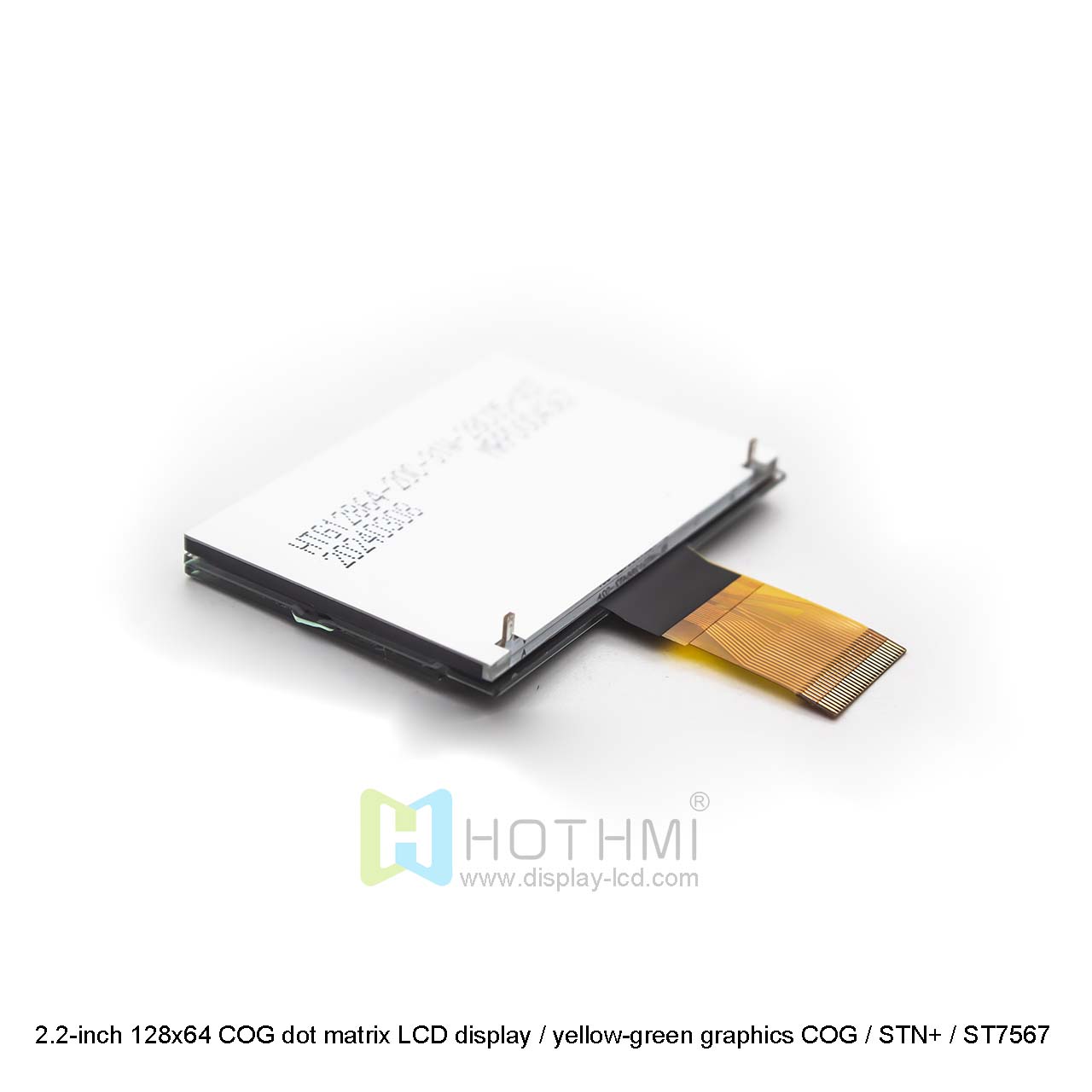

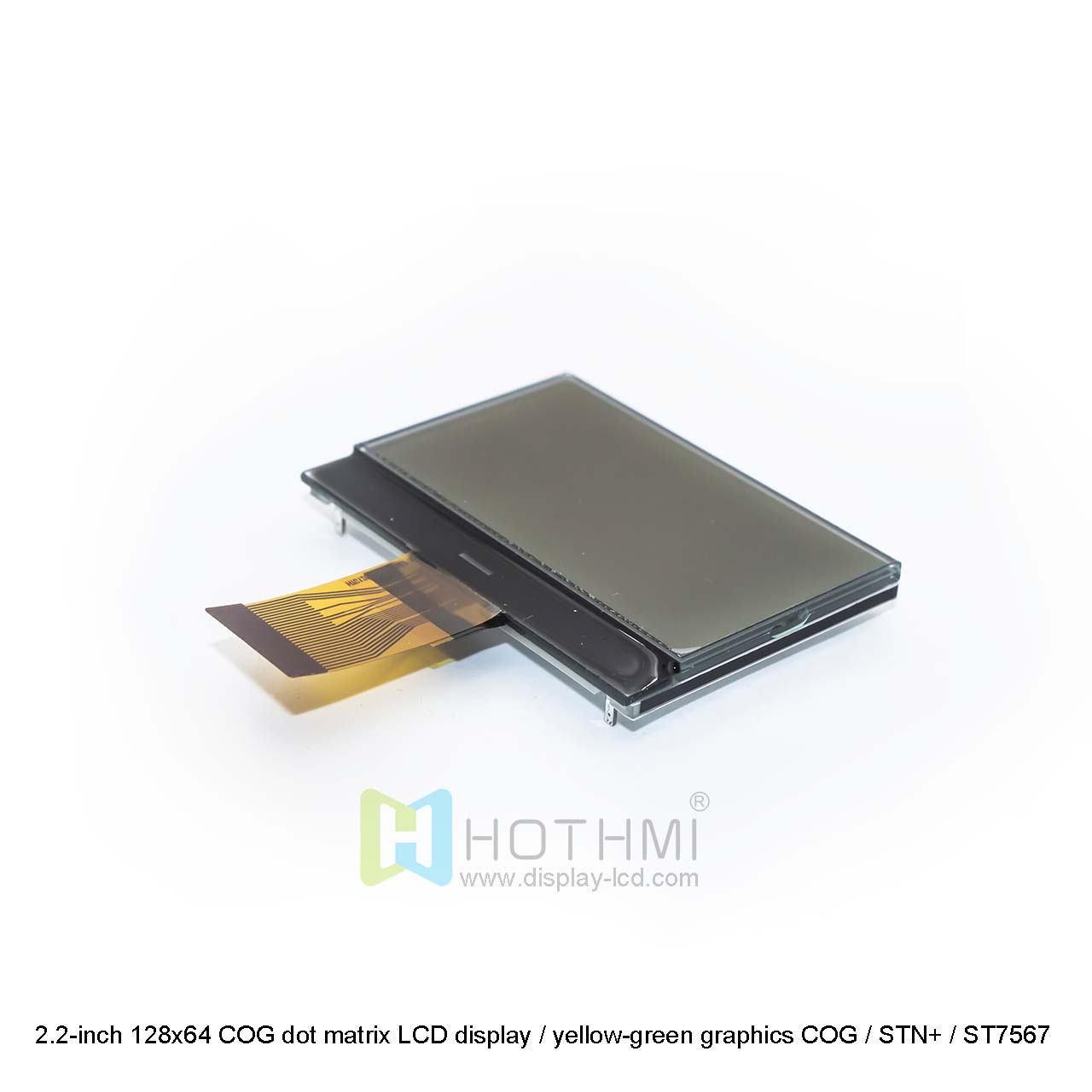

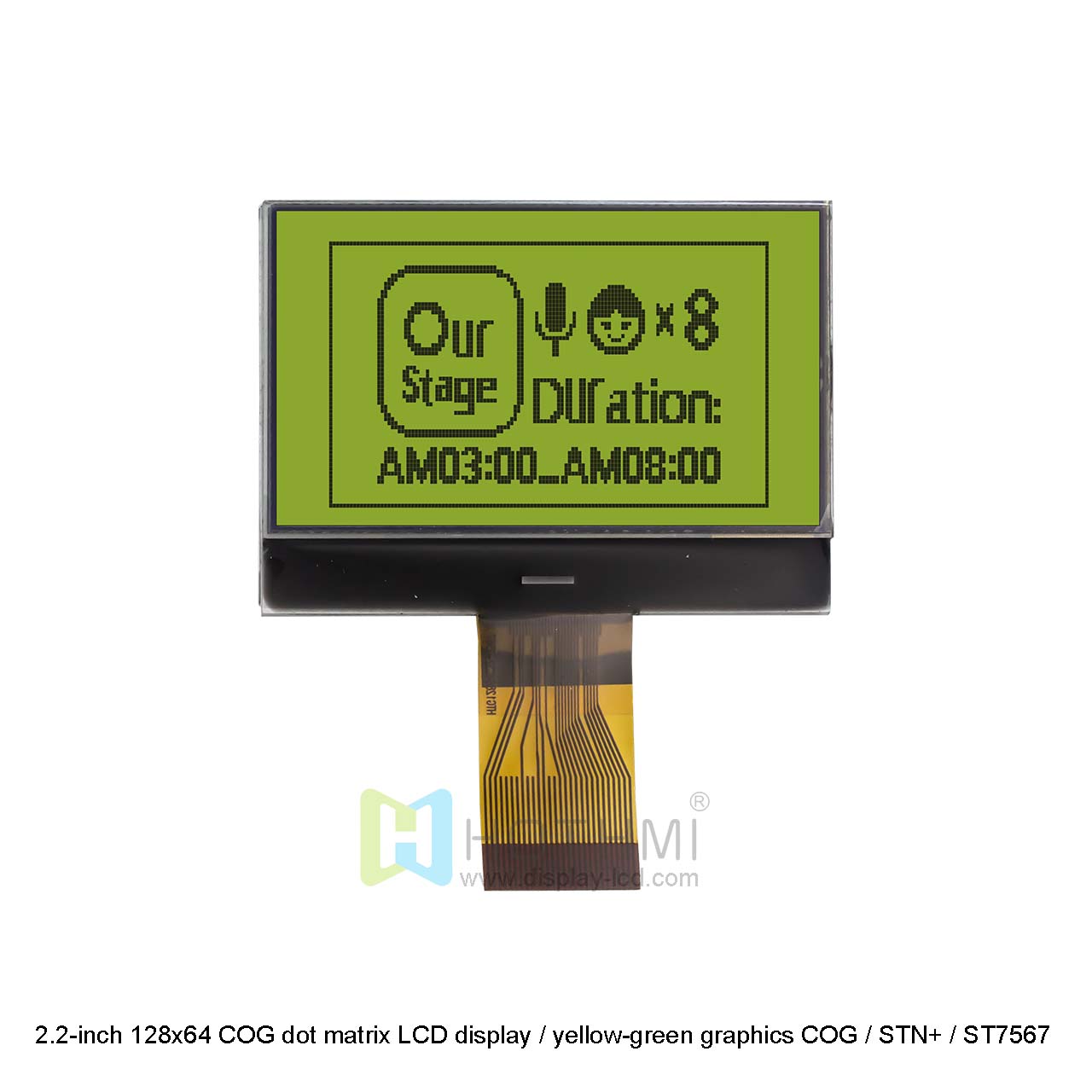

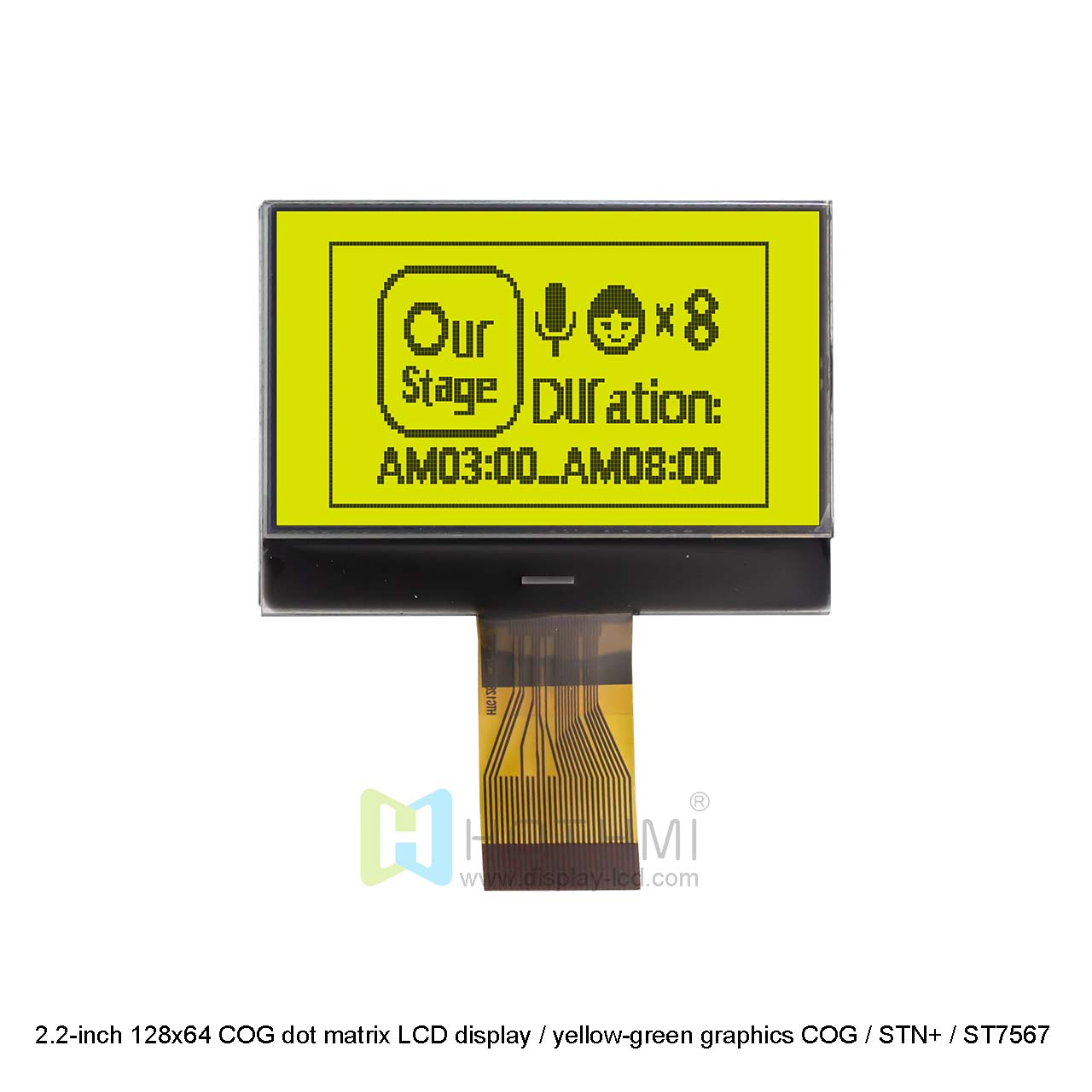

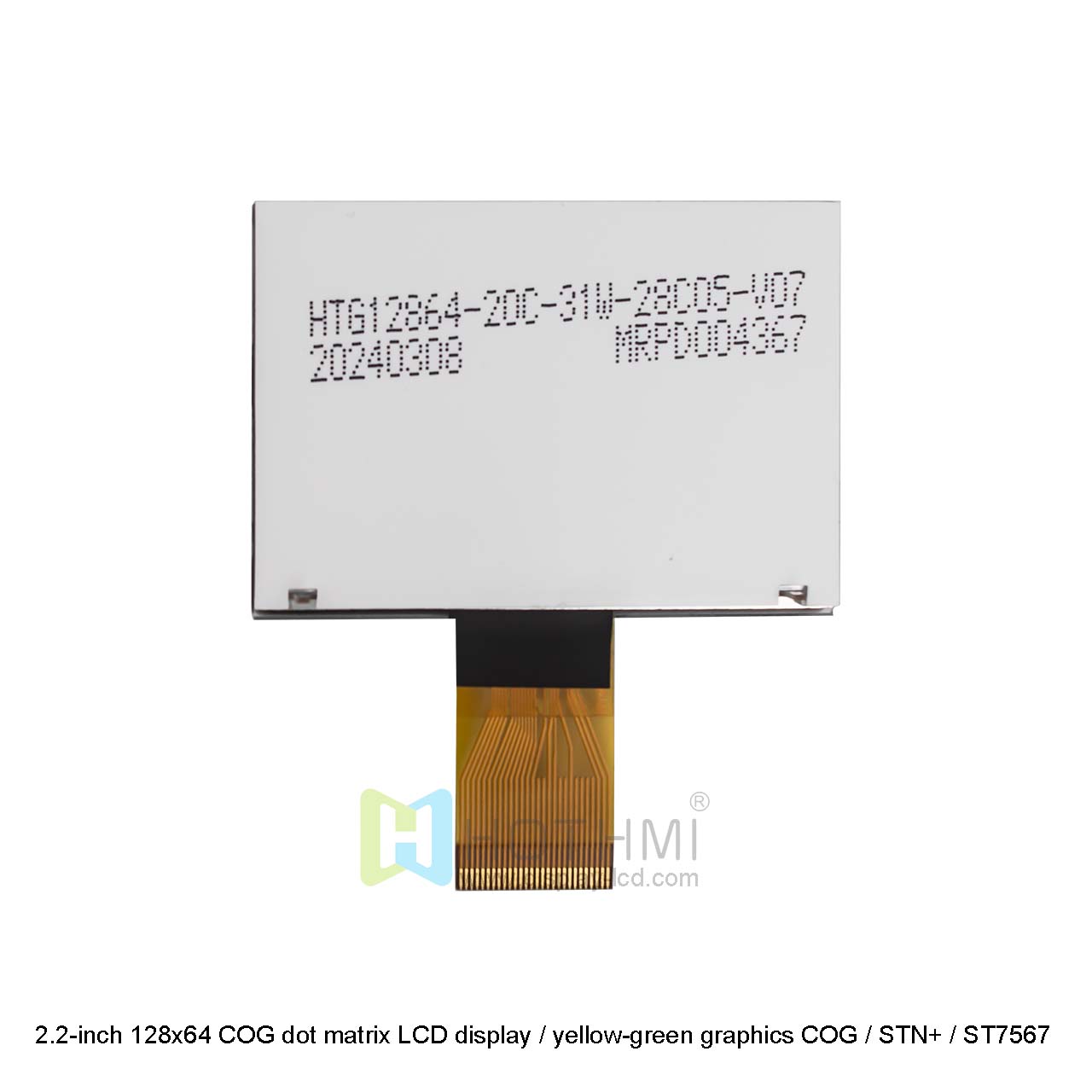

This HOT DISPLAY's 2.2-inch 128x64 COG dot matrix LCD display/yellow-green graphic COG/STN+/ST7567 controller/Arduino can display dark pixels on a yellow-green background. This translucent LCD display is carefully designed to provide optimal visibility in a variety of lighting conditions in many different environments. Under the translucency of the polarizer, the image is reflected to the viewer, making the screen easy to read. In darker environments, the LCD has a strong backlight built in to provide high contrast and display clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.
This graphic LCD display module is fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. This model is designed to withstand harsh working conditions and will not operate abnormally when used in a temperature range of -20 to 70 degrees Celsius. This display is moderately sized, exquisite and beautiful, with clear display, and industrial control level support for long-term use. The LCD has an optimal viewing angle of 6:00, operates at 3.3V, and is RoHS compliant.
