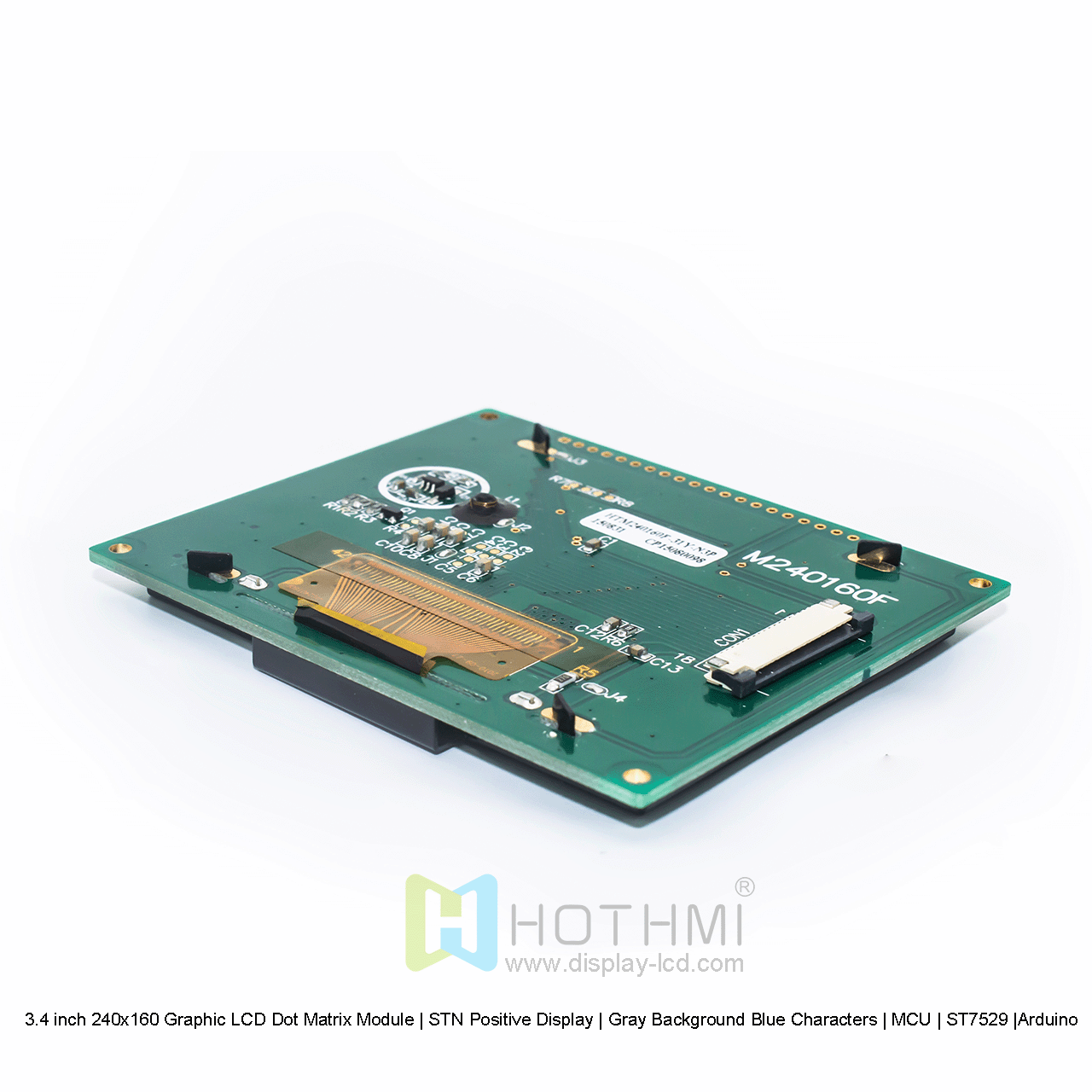

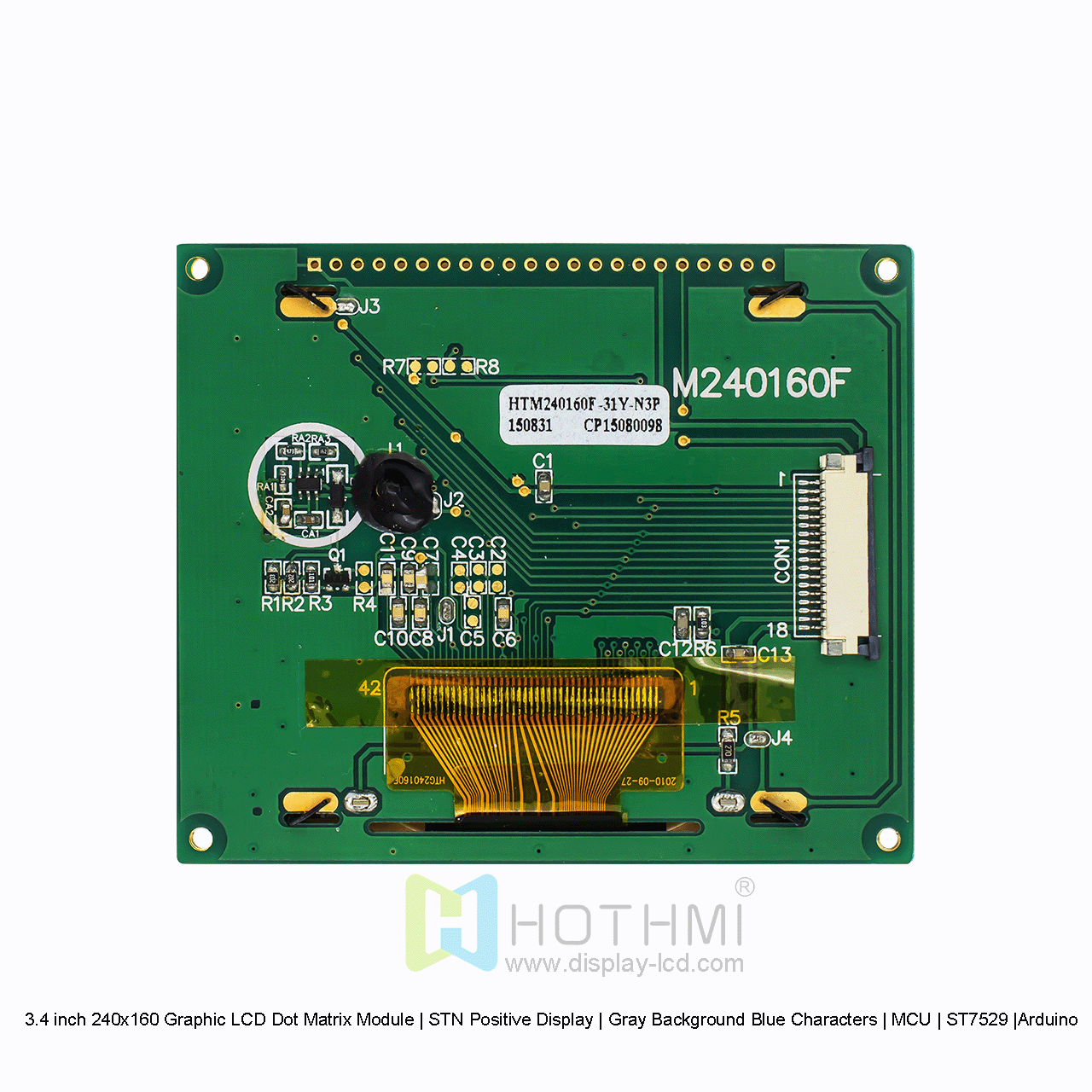

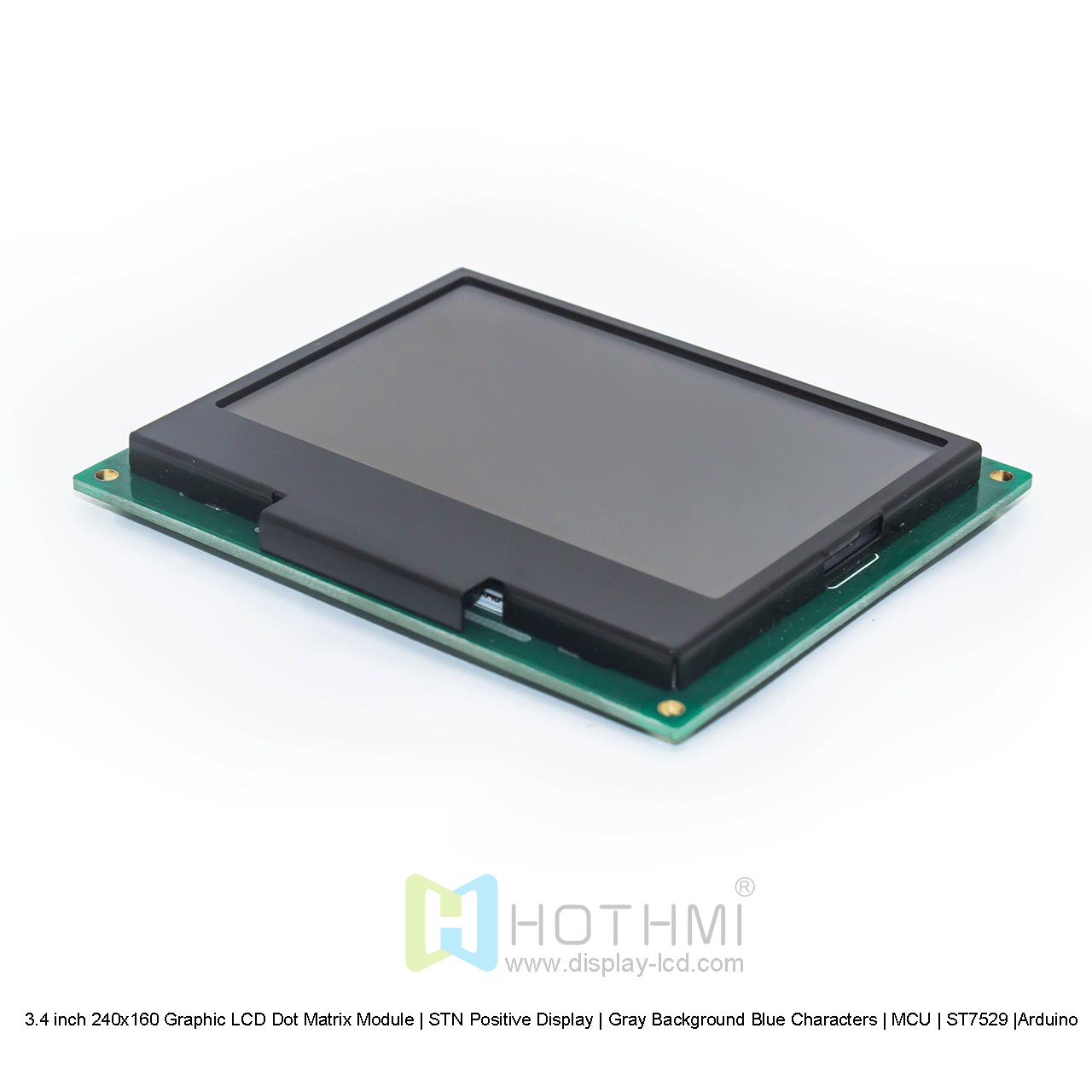

Product type：Graphic LCD Module
Show contents：240x160
Outline size(mm) ：87.0x73.0x10.0
Size of View Window(mm)：72.9x48.0
Display size(mm) ：67.42x44.94
Point spacing(mm)：0.281x0.261
Product application：Instruments
Visual angle：6H
Connection PIN Number：18PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3V
Driver chip model：ST7529

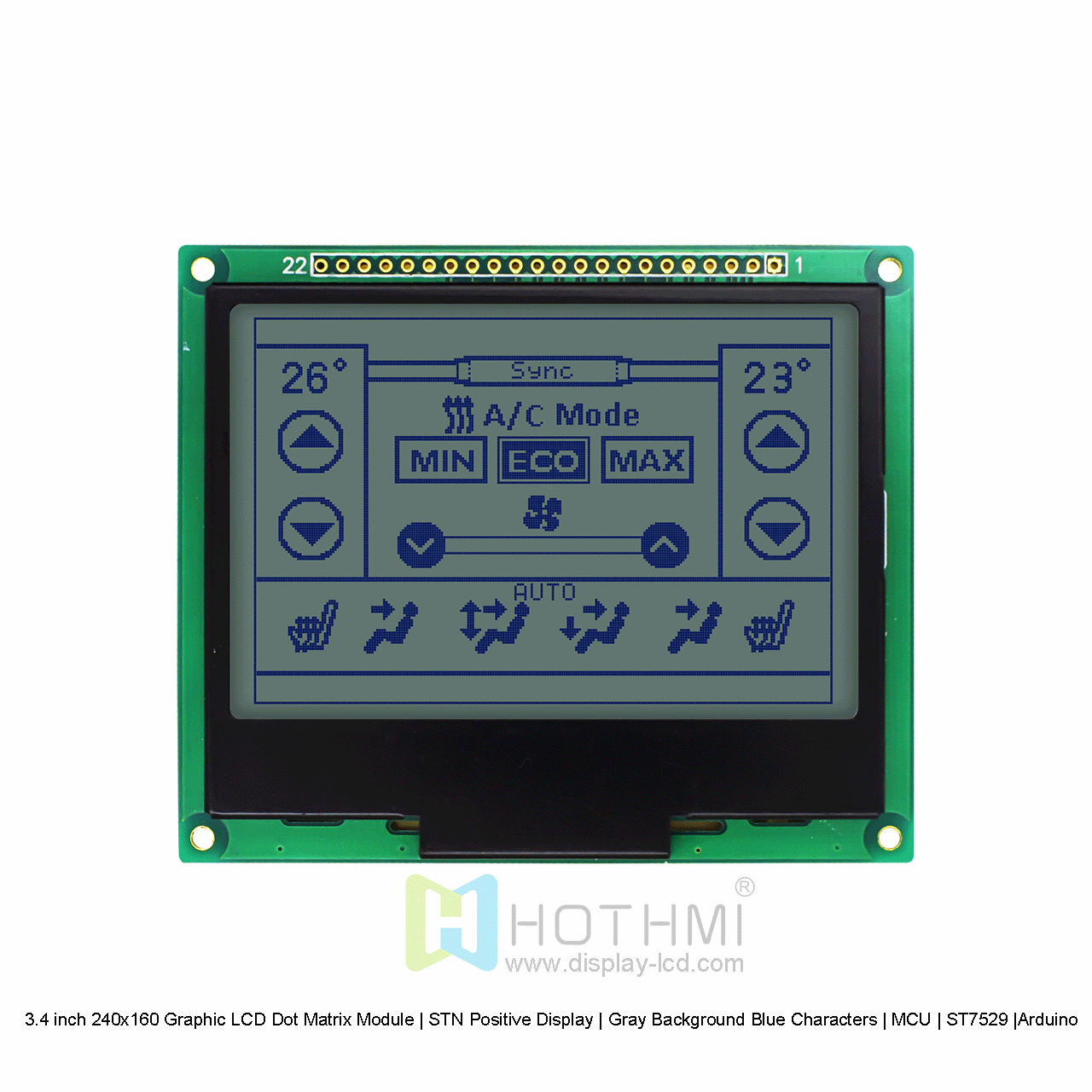

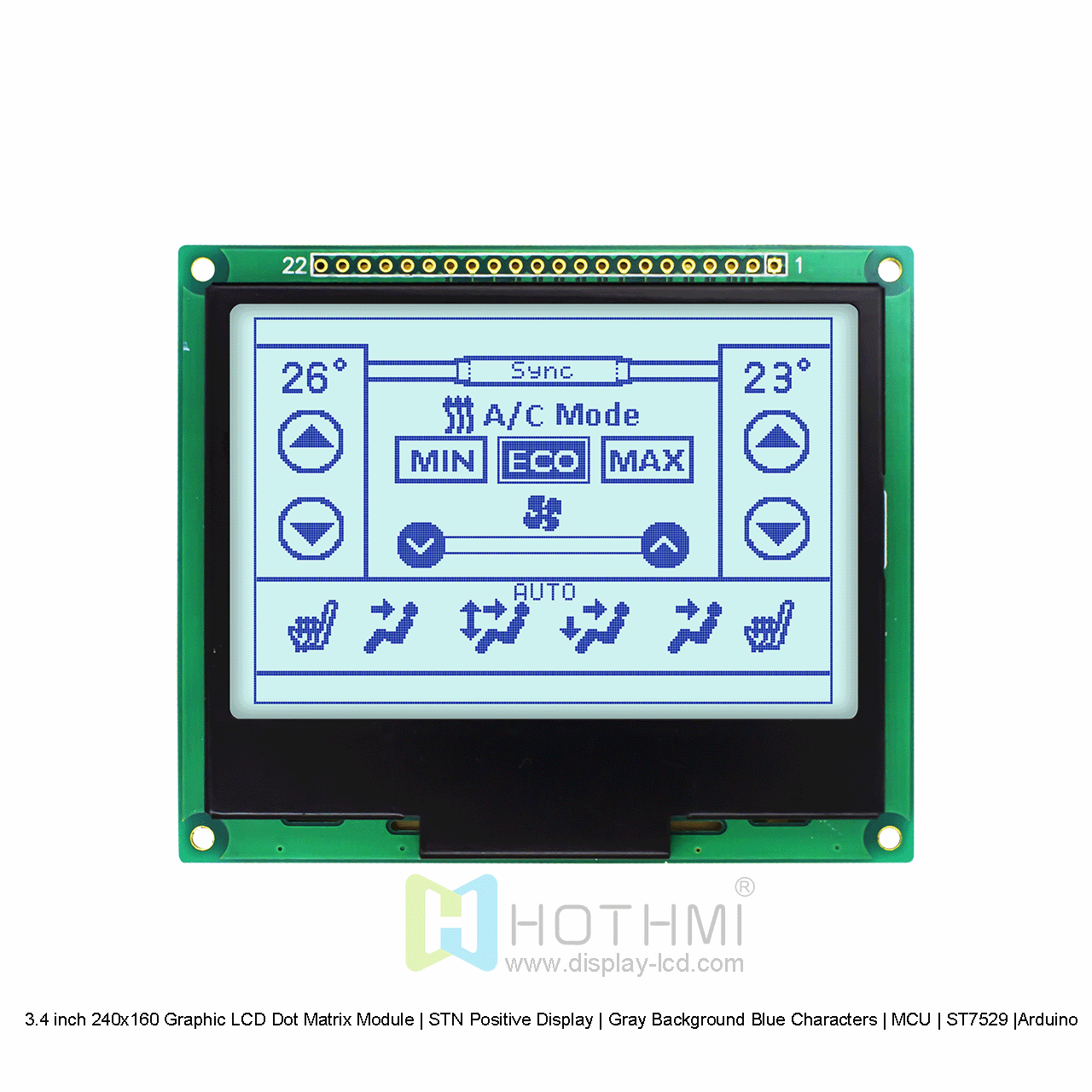

This HOT Display 240x160 Graphic LCD Display Module displays illuminated blue pixels on a light gray background. This transflective LCD display is carefully designed to provide optimal visibility in a variety of lighting conditions in many different environments. In bright sunlight, the reflective nature of the polarizer reflects the content back to the viewer, making the screen easy to read. In darker environments, high contrast is provided and clear graphics are displayed to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.
This graphic LCD display module has a built-in negative voltage. It is also fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. The HTM240160F model is designed to withstand harsh operating conditions and operates abnormally when used in a temperature range of -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, operates at 3.3V, and is RoHS compliant.
