Product type：TFT
Show contents：240x320
Outline size(mm) ：76.84X63.84X4.65
Size of View Window(mm)：3.5
Display size(mm) ：3.5
Effective size(mm)：70.08X52.560
Product application：handheld devices, small speakers, small home appliances ? Viewing angle: IPS full viewing angle
Visual angle：IPS
Backlight type or brightness：600cd/M2
Connection PIN Number：54pin
Interface mode：RGB
Special instructions：Anti-static ESD 8KV
Working temperature：-30~85℃
Power supply voltage：+2.8 V
Driver chip model：ST7272A

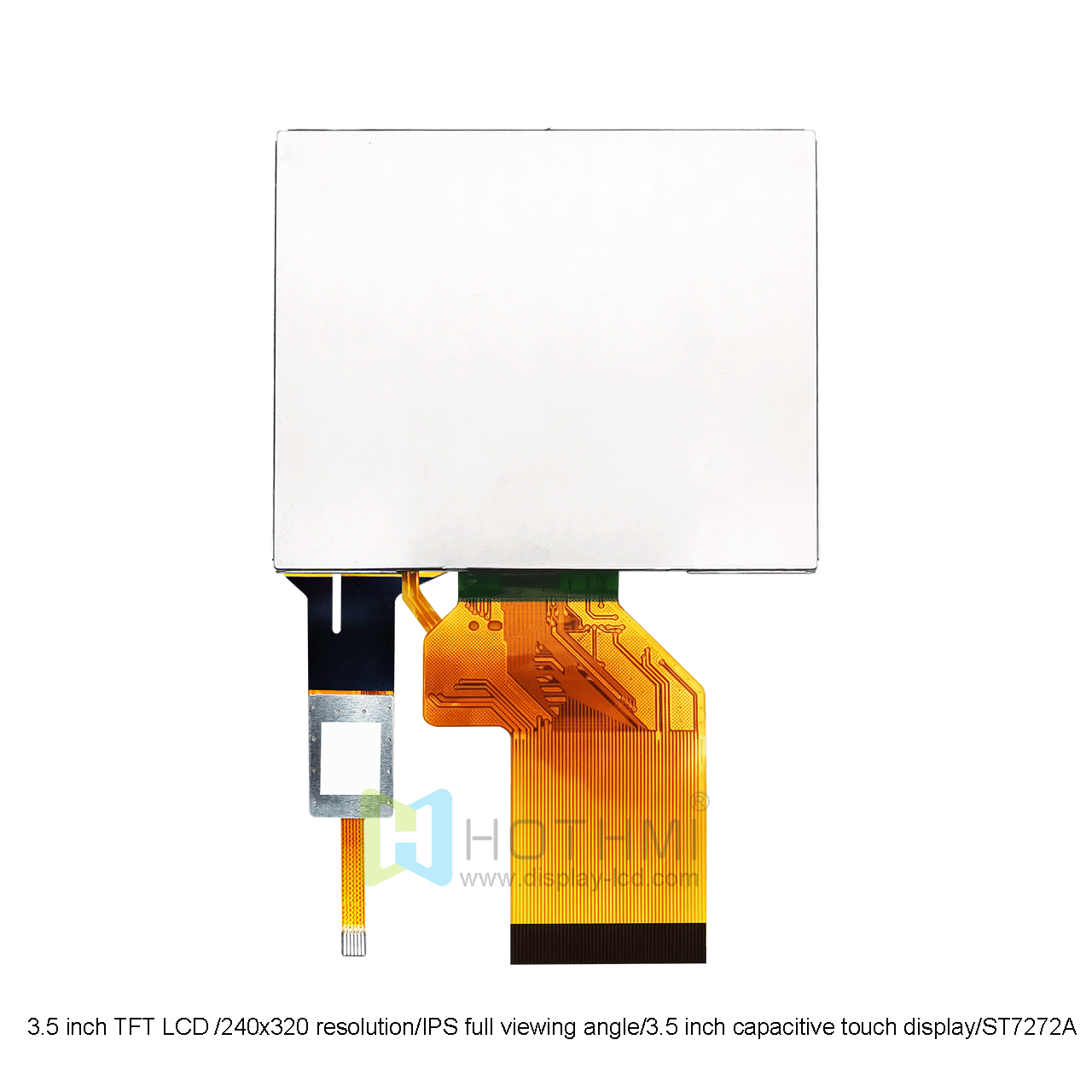

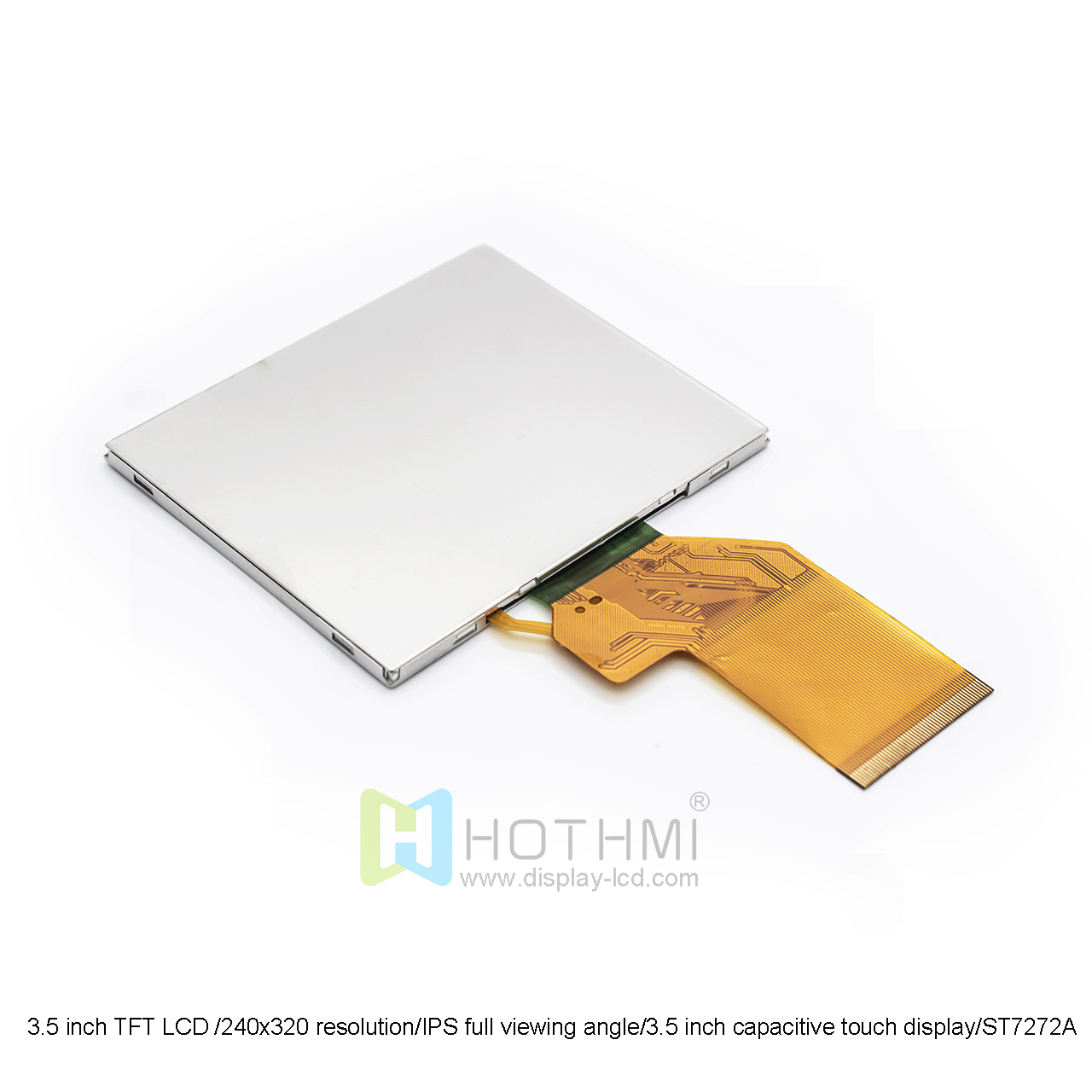

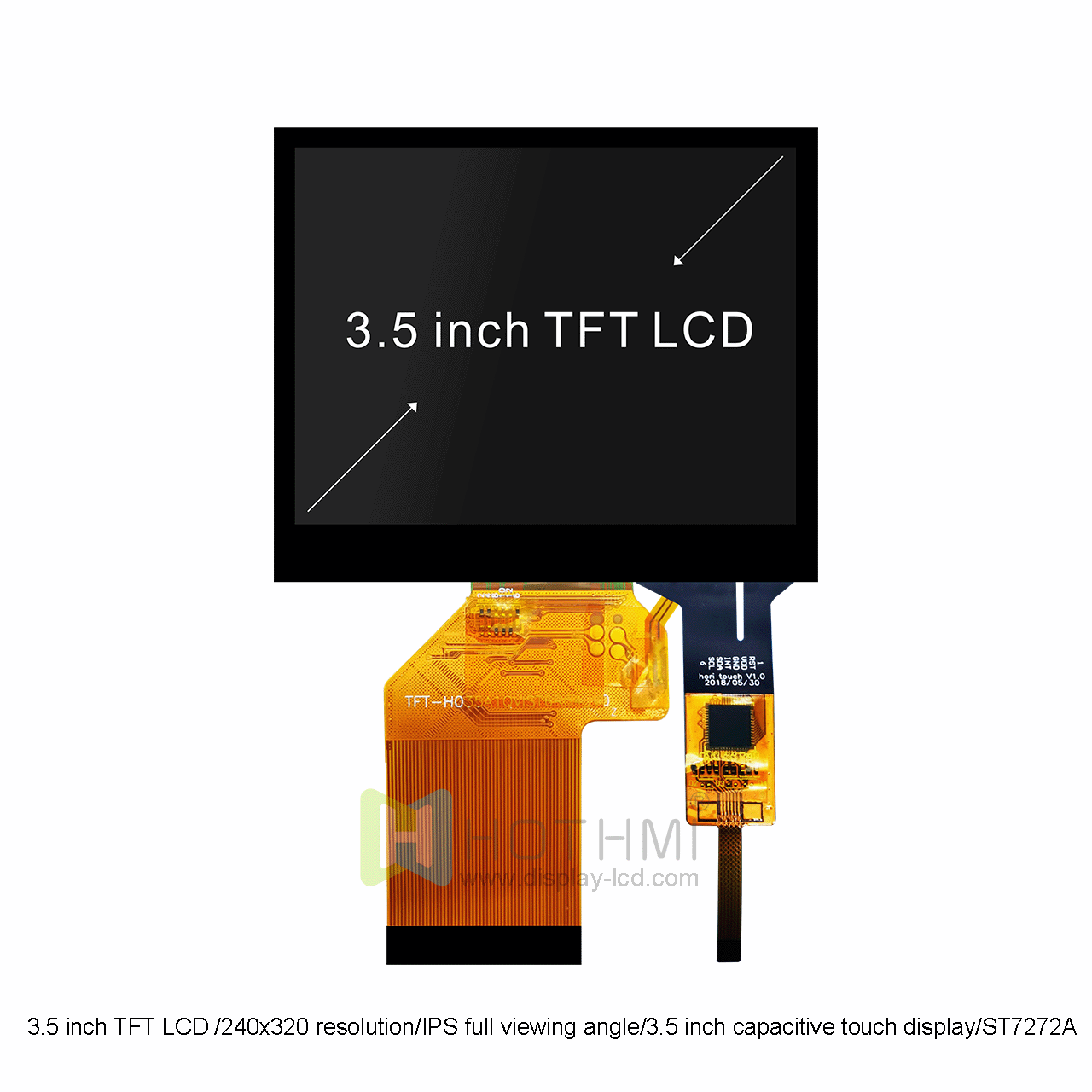

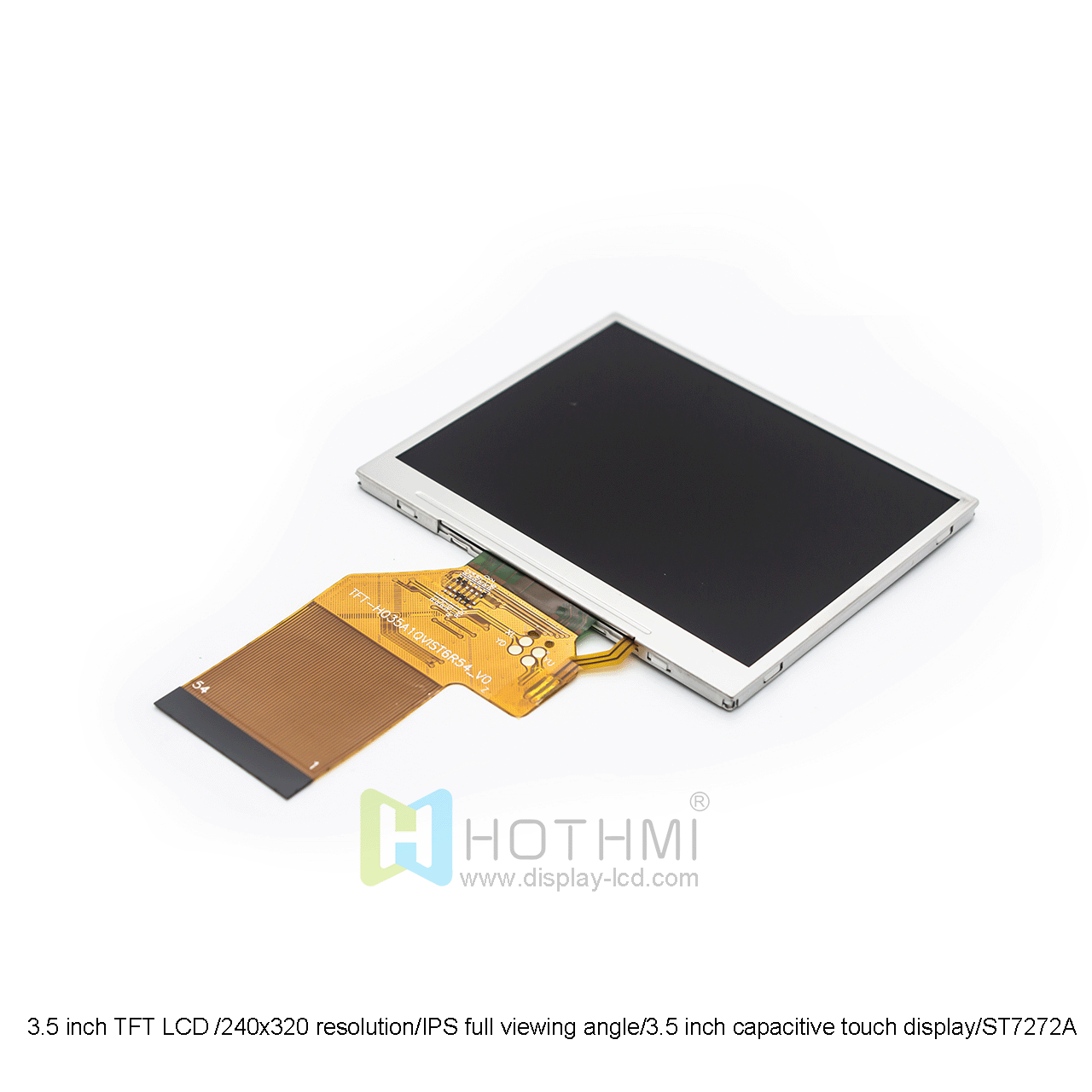

This TFT-H035A1QVIST6C54 is a 240x320 dot 3.5 inch color TFT LCD display with ST7272A controller, excellent display quality, full viewing angle, angle is easy to be controlled by MCU such as 8051, PIC, AVR, ARDUINO ARM and Raspberry PI. It can be used in any embedded system, industrial equipment, security and handheld devices that need to display with high quality and color images. It supports MCU interface. With optional FPC zif connector, it is easy to assemble or disassemble. This model is equipped with capacitive touch function or without touch function, customized cover, etc.
Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure. |
Touchscreen add-ons: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design. |
Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals. |
Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris. |
