類型：TFT豎屏
顯示像素：480x800
外形尺寸 ：60.86x102.57x2.3
VA尺寸：4.3
AA尺寸 ：4.3
應用：儀器儀表
視角：全視角
背光/亮度：450cd/m2
引腳：45pin
接口方式：SPI
特殊說明：抗靜電ESD 8KV
工作溫度：-20~70℃
供電電壓：2.8v
驅動芯片：ST7701S

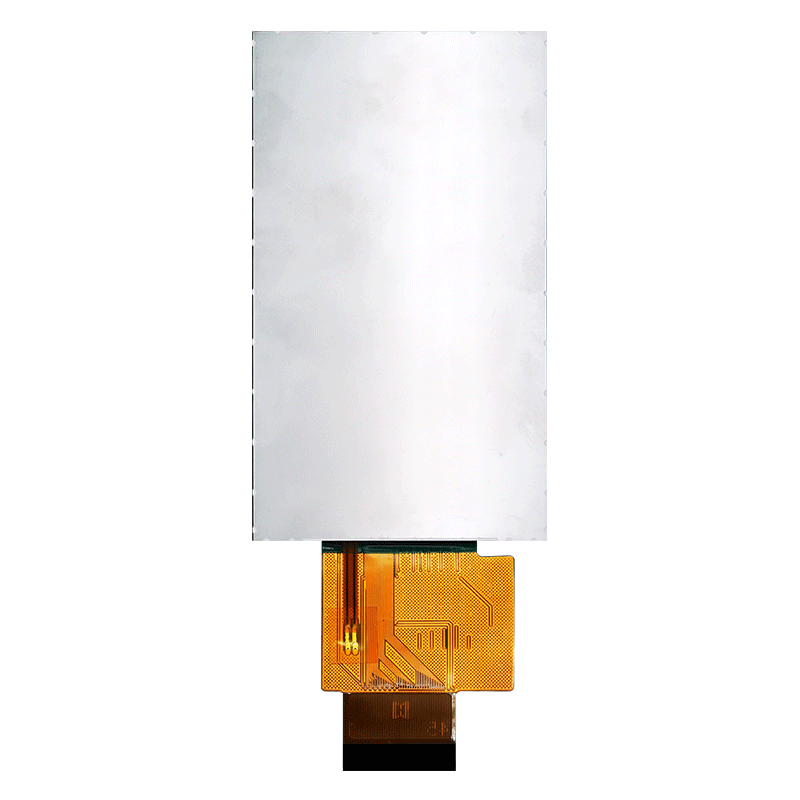

4.3寸 TFT LCD 顯示模塊 480X800分辨率 TFT LCD 顯示器制造商用于儀器儀表 H043B15WVIST4N45
TFT-H043B15WVIST4N45 | 4.3英寸IPS LCD顯示屏 | TFT LCD顯示屏制造商 | 480x800分辨率 | -20℃~70℃ | 用于儀器儀表
隆重推出 TFT-H043B15WVIST4N45，這是一款專為儀表應用設計的高品質 4.3 英寸 TFT LCD 顯示模塊。 該模塊具有 480x800 像素的分辨率和 IPS LCD 顯示屏，可提供清晰的圖像和鮮艷的色彩，非常適合顯示關鍵數據和信息。
該模塊由領先的 TFT LCD 顯示器制造商設計和制造，具有 -20℃ 至 70℃ 的寬溫度范圍，適用于各種環境。 其緊湊的尺寸和易于使用的界面使其易于集成到您現有的儀器系統中。
無論您是設計新儀器還是升級現有儀器，TFT-H043B15WVIST4N45 都能提供完成工作所需的可靠性和性能。 憑借其高質量的顯示屏和耐用的結構，該模塊一定能滿足您未來幾年的需求。
那為什么還要等？ 立即訂購您的 TFT-H043B15WVIST4N45 TFT LCD 顯示模塊，親身體驗不同之處！
General Feature
Item | Standard Value | Unit | ||
Display Size | 4.3 | Inch | ||
Number of Pixels | 480(H)*3(RGB)* 800(V) | dots | ||
Active Area | 56.16x93.6mm | mm | ||
Outline Dimension | 60.86x102.57x2.3 | mm | ||
Viewing Direction | FULL O'clock | - | ||
Interface | SPI+RGB | - | ||
Driver IC | ST7701S | - | ||
Driver Condition | VCI=2.8V(Typ) | V | ||
Backlight | - | - | ||
Touch Panel | WHITOUT TOUCH | |||
CTP Driver IC | - | - | ||
Driver Condition | VDD=2.8 | V | ||
TFT Operation AT | -20 ～ +70 | ℃ | ||
TFT Storage AT | -30 ～ +80 | ℃ | ||
Pin Description
| Pin NO. | Symbol | Description |
| 1 | RTP-XR/CTP-SCL | Touch control pin |
| 2 | RTP-YD/CTP-SDA | Touch control pin |
| 3 | RTP-XL/CTP-INT | Touch control pin |
| 4 | RTP-YU/CTP-RES | Touch control pin |
| 5~6 | GND | Ground |
| 7 | VCI | Digital Power |
| 8 | IOVCC | Power Supply for I/O System |
| 9 | SDO | Serial data output pin used for the SPI Interface. |
| 10 | SDI | Serial data input/output bidirectional pin for SPI Interface. |
| 11 | SCL | Serial clock input for SPI interface. |
| 12 | CS | A chip select signal |
| 13 | RESX | TFT Reset Pin |
| 14~21 | DR[7~0] | Red data bus |
| 22~29 | DG[7~0] | Green data bus |
| 30~37 | DB[7~0] | Blue data bus |
38 |
DEN | Data input enable. Low: access enabled ; High: access inhibited |
| 39 | PCLK | Pixel clock input pin |
| 40 | HSD | Horizontal sync signal |
| 41 | VSD | Vertical sync signal |
| 42 | NC | No Connect |
| 43 | LEDK | LED Cathode |
| 44 | NC | No Connect |
| 45 | LEDA | LED Anode |
