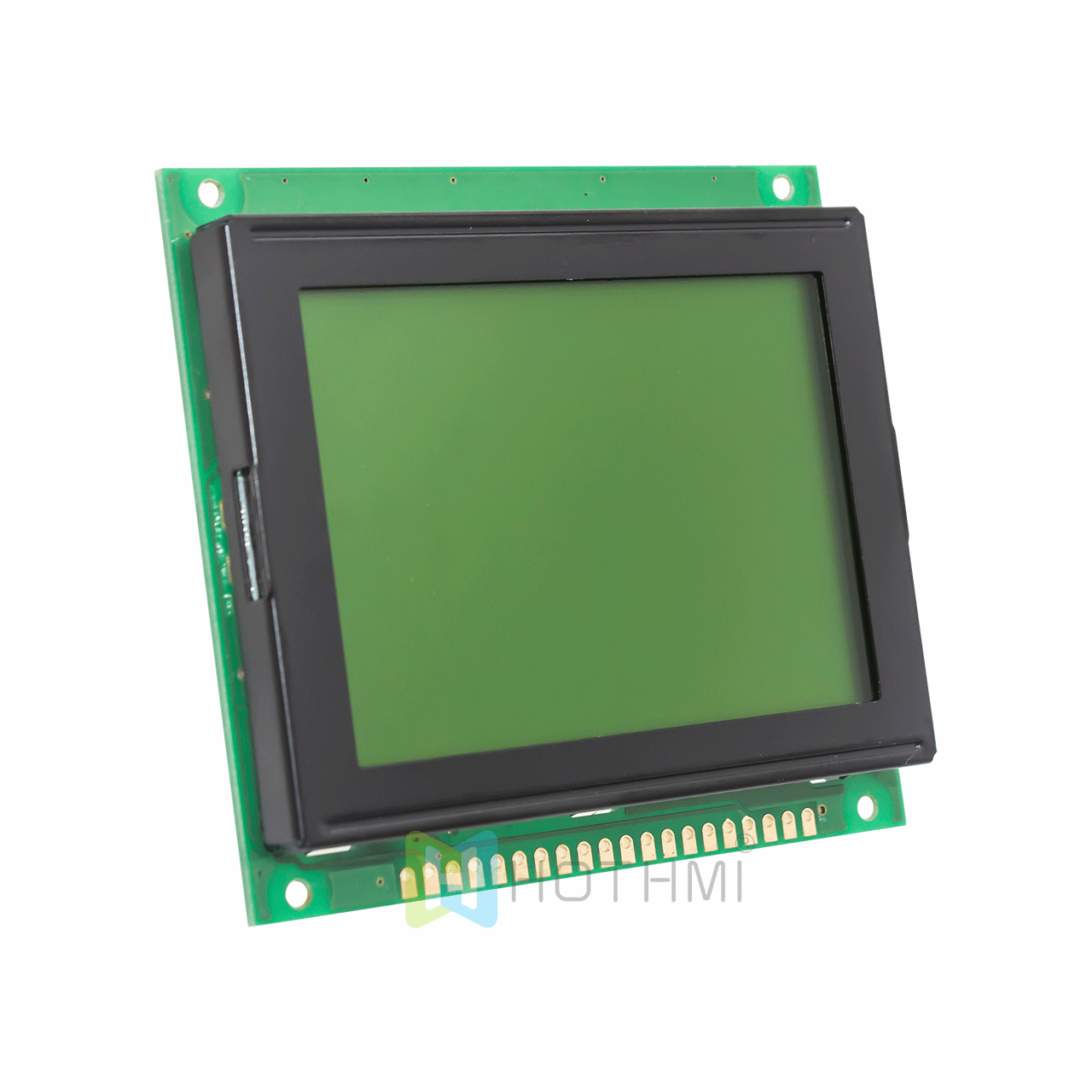

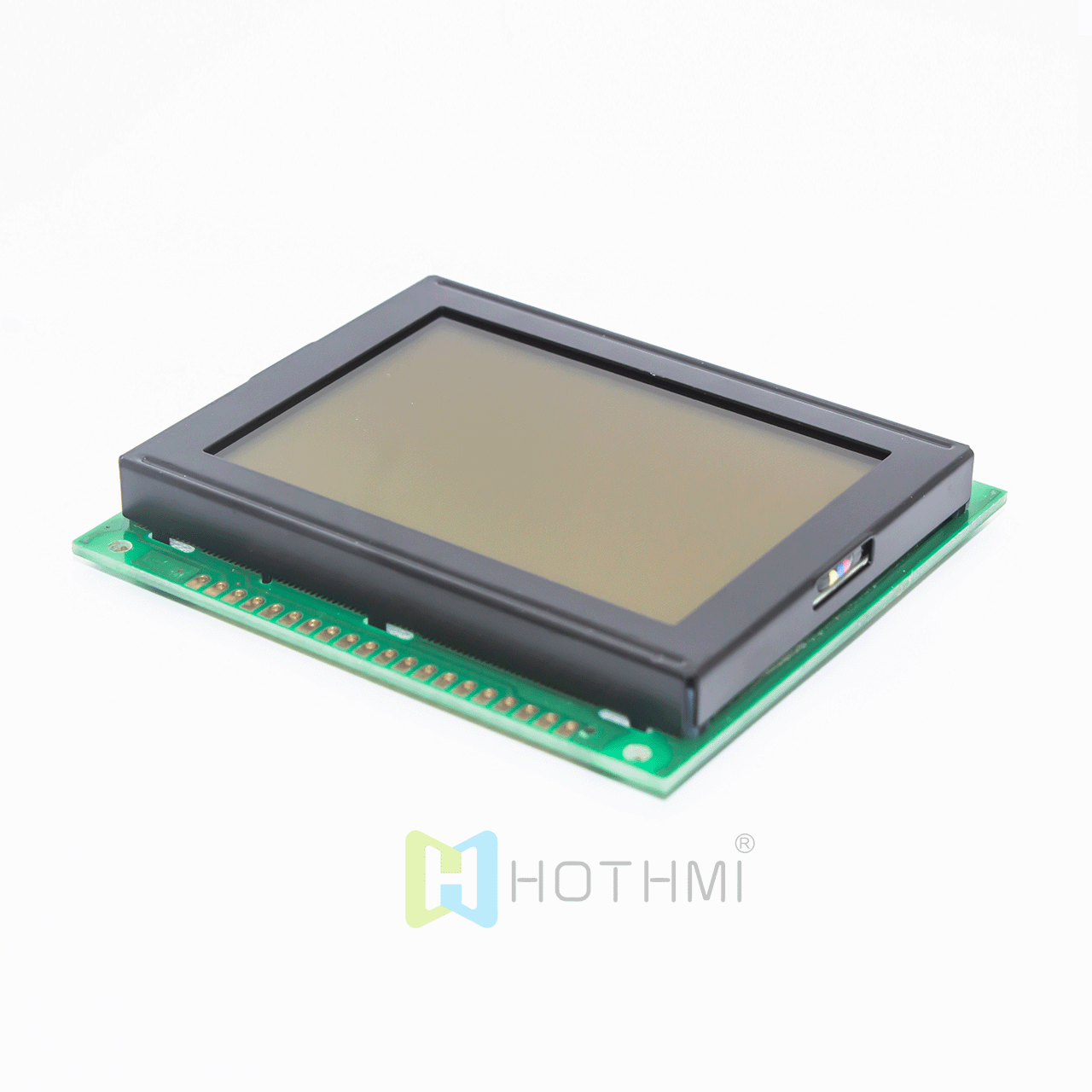

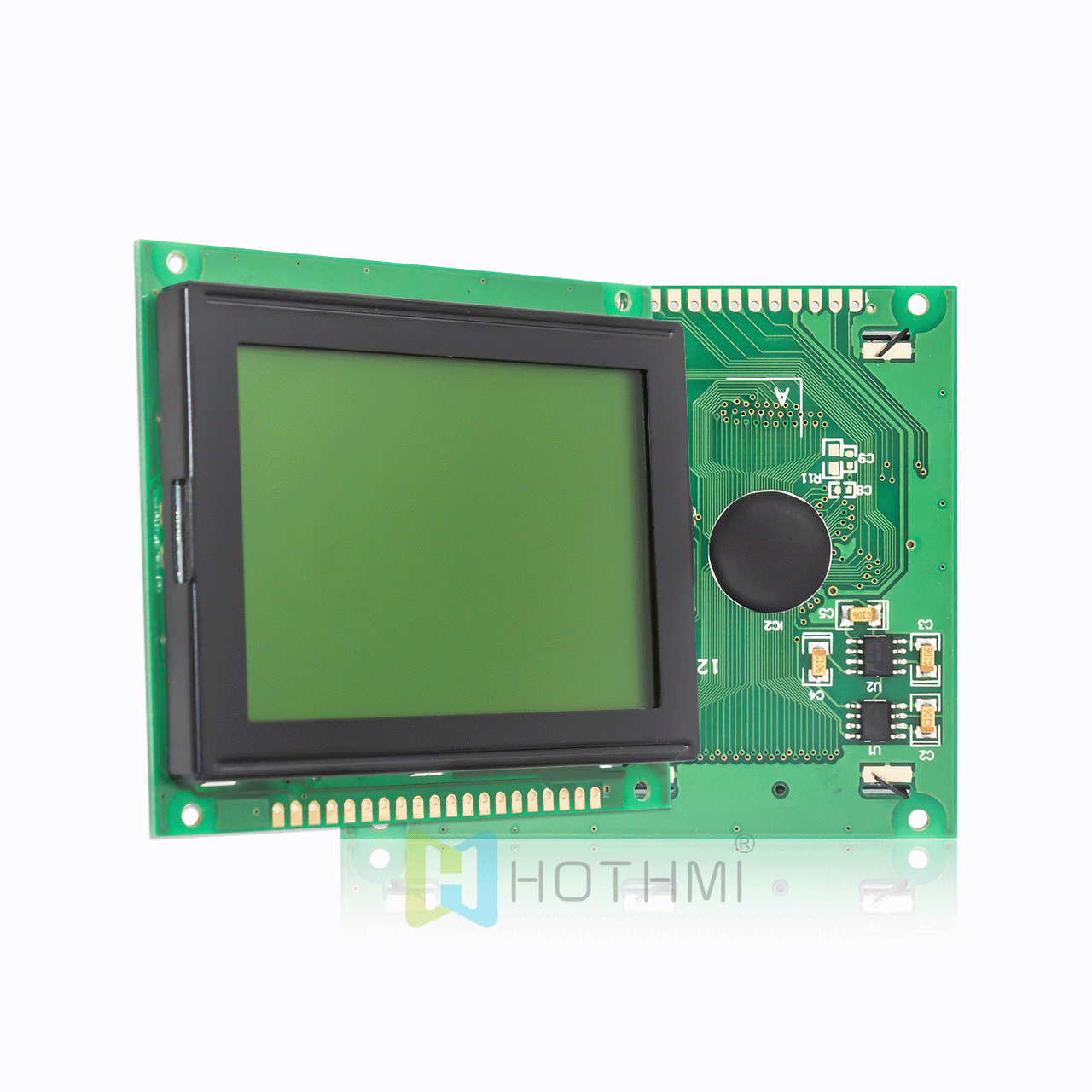

Product type：Graphic LCD Module
Show contents：128x64
Outline size(mm) ：78.0x70.0x12.5
Size of View Window(mm)：62.0x44.0
Display size(mm) ：56.28x38.36
Point spacing(mm)：0.60x0.4
Product application：Instruments
Visual angle：6H
Backlight type or brightness：YG
Connection PIN Number：20PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：0~50℃
Power supply voltage：5.0V

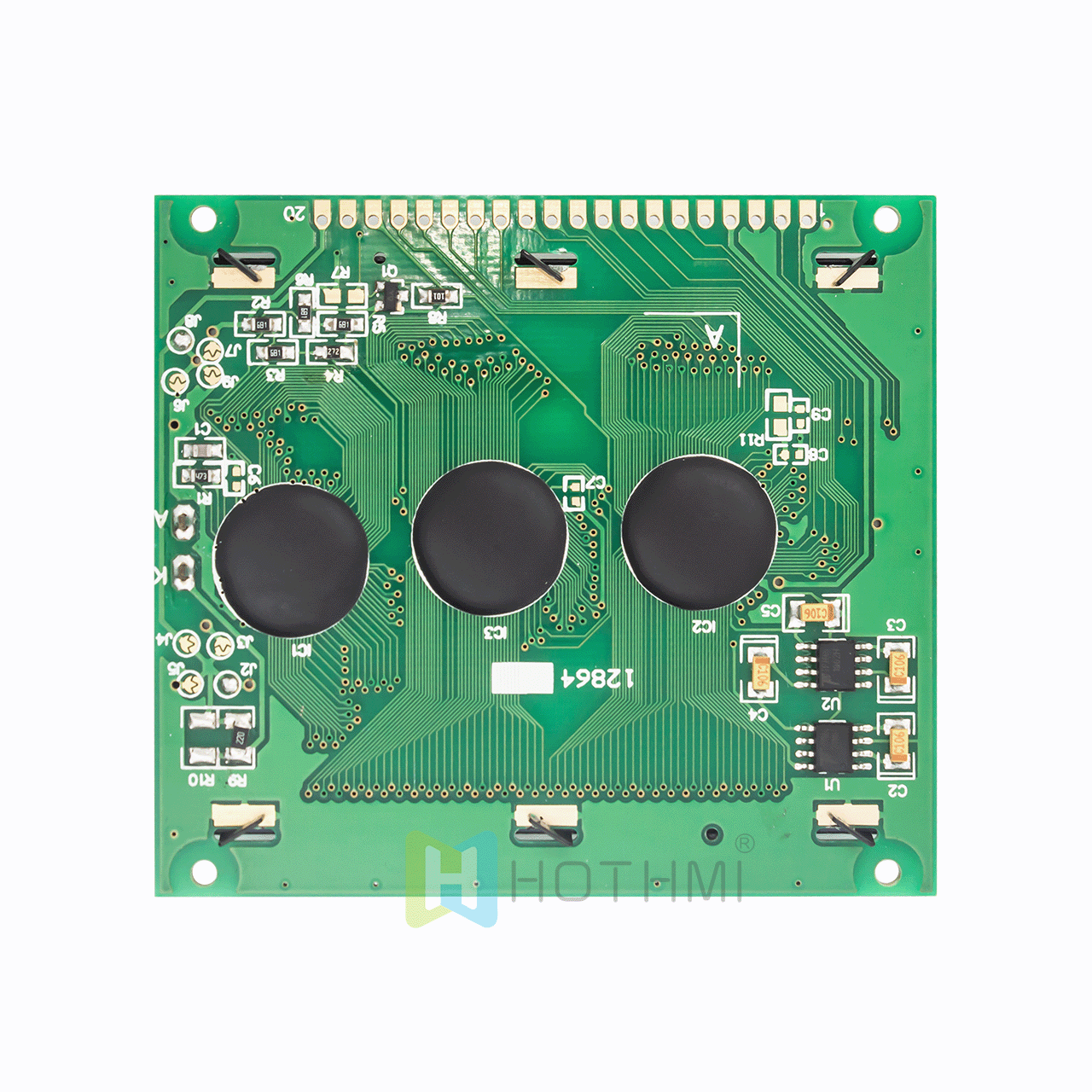

Driver chip model：ST7567

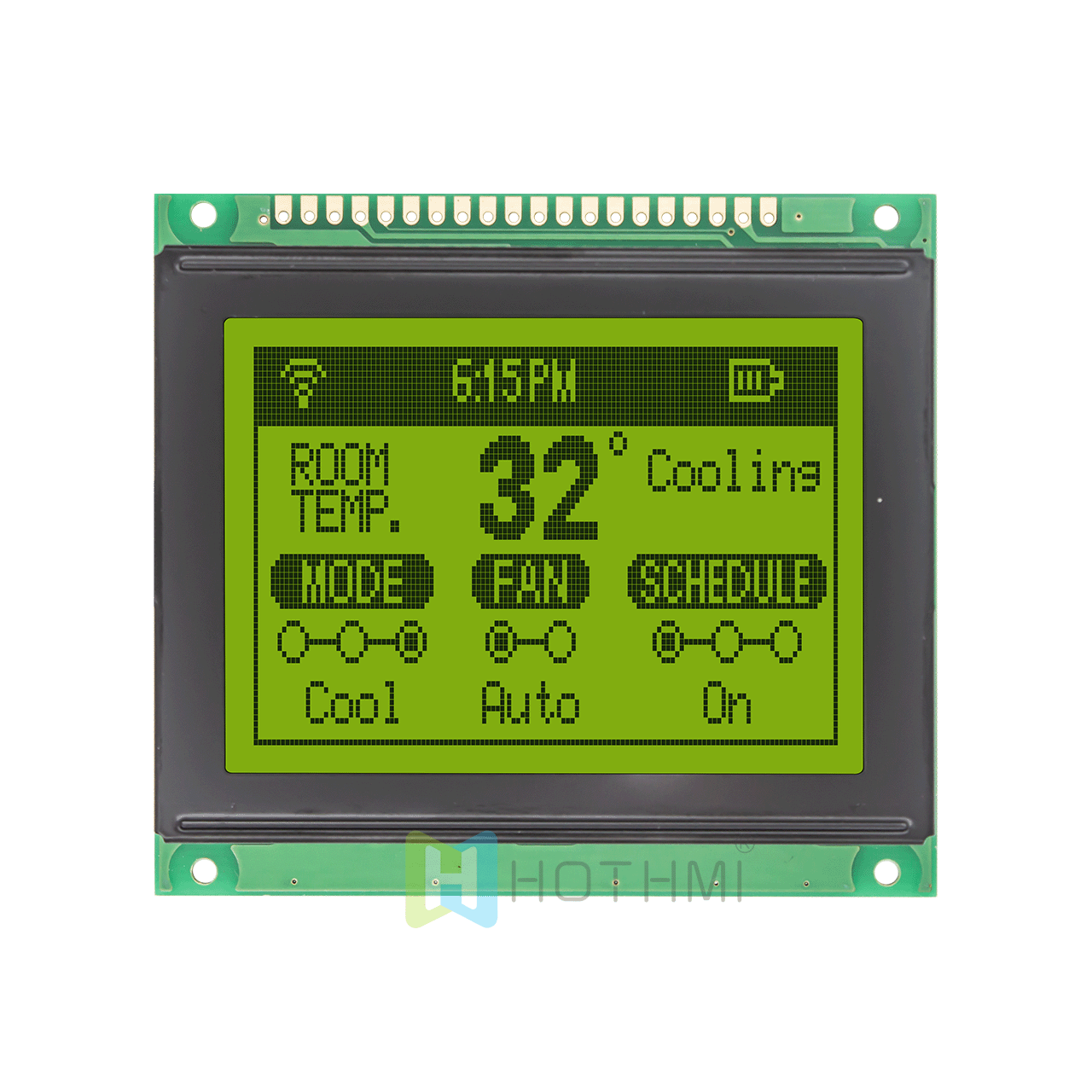

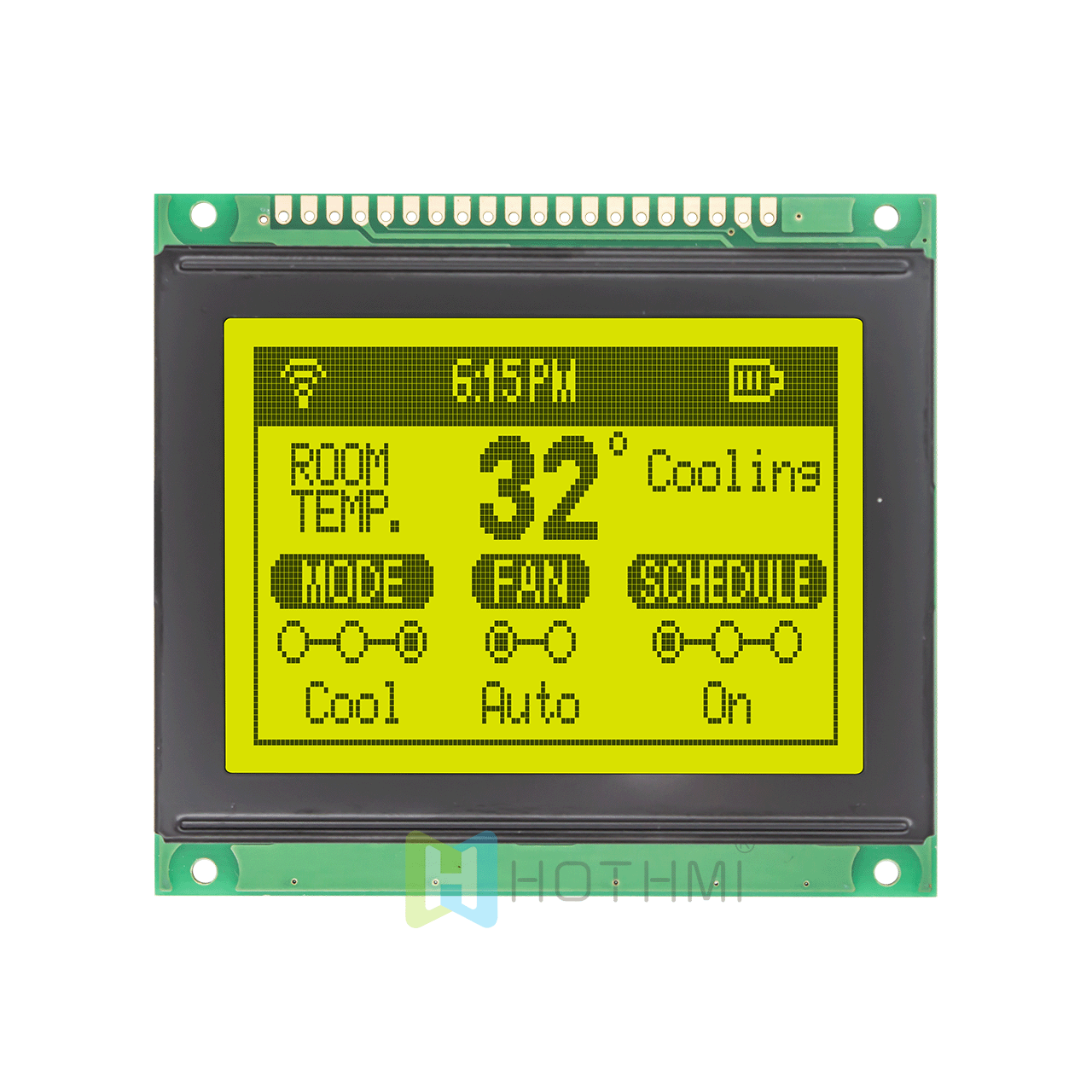

This Hot Display graphic LCD module displays deep black pixels on a vibrant yellow/green background. This transflective LCD monitor is engineered to provide optimal visibility in a variety of lighting conditions in a variety of environments. In bright sunlight, the display uses its reflective layer to reflect ambient light back to the viewer, making the screen easy to read. In darker environments, the LCD has a strong built-in backlight that provides high contrast and displays clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read, regardless of lighting conditions.
This graphic LCD display module is fully compatible with Arduino and can be seamlessly connected with other electronic systems for a variety of applications. Hot Display models are designed to withstand harsh operating conditions and perform exceptionally well when used in temperatures ranging from -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, operates on 5V, and is RoHS compliant.
