Product type：TFT LCD
Show contents：1024x768
Outline size(mm) ：227x175.8x6.5
Size of View Window(mm)：10.4
Display size(mm) ：10.4
Effective size(mm)：210.43x157.82
Product application：Vehicle, medical, industrial control
Visual angle：Full view

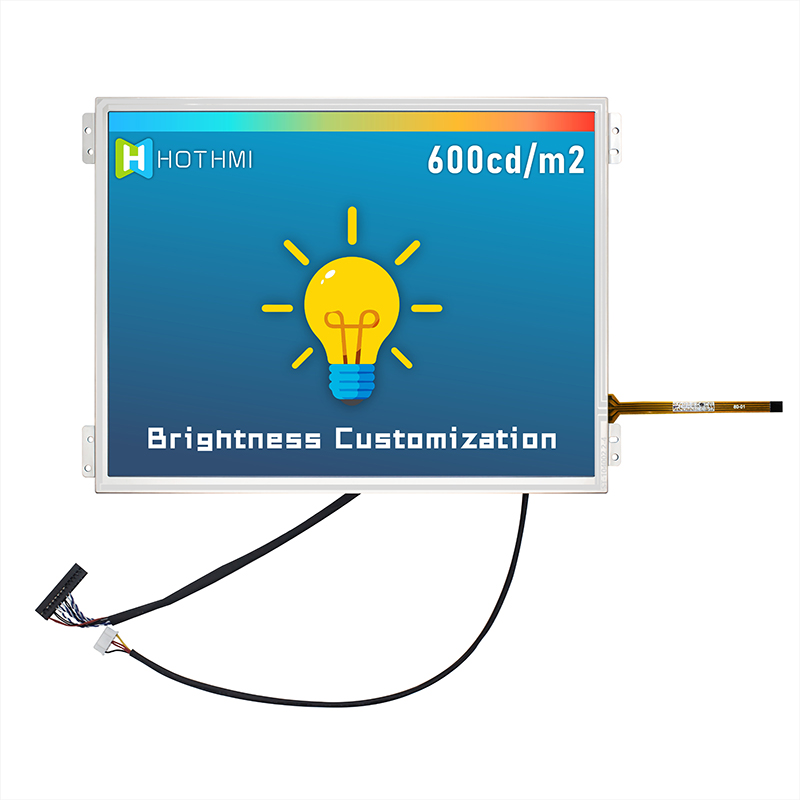

Backlight type or brightness：600cd/m2
Connection PIN Number：30pin
Interface mode：RGB

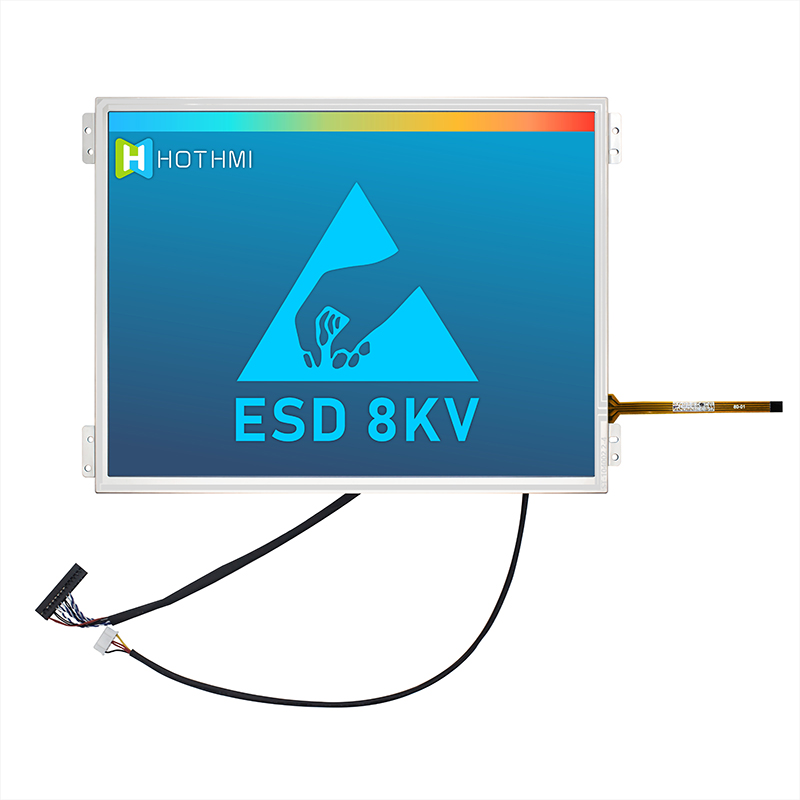

Special instructions：Anti-static ESD 8KV

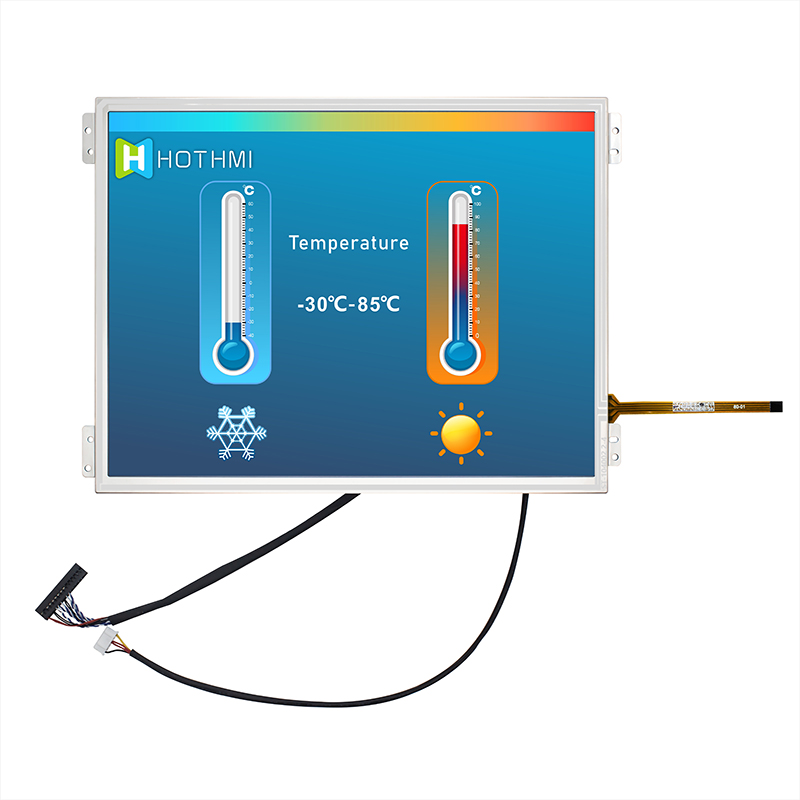

Working temperature：-30~80℃
Power supply voltage：3.3V
Driver chip model：T.B.D

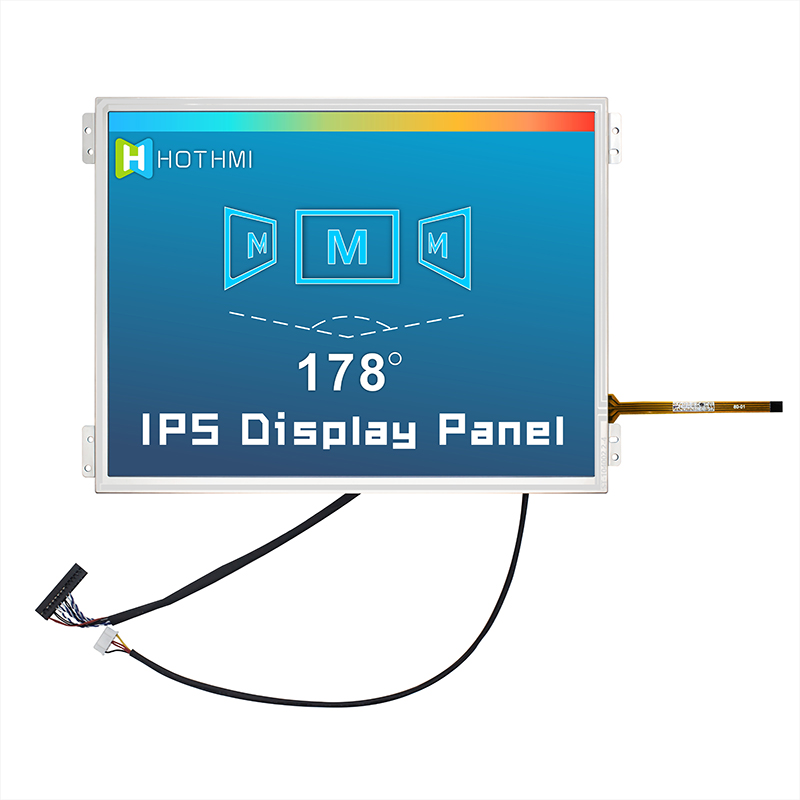

Introducing the TFT-104IA-36A, a cutting-edge 10.4-inch IPS TFT LCD Display specially designed for medical devices. With its superior features and wide temperature range of -30℃ to 80℃, this display panel ensures optimal performance even in extreme operating conditions.

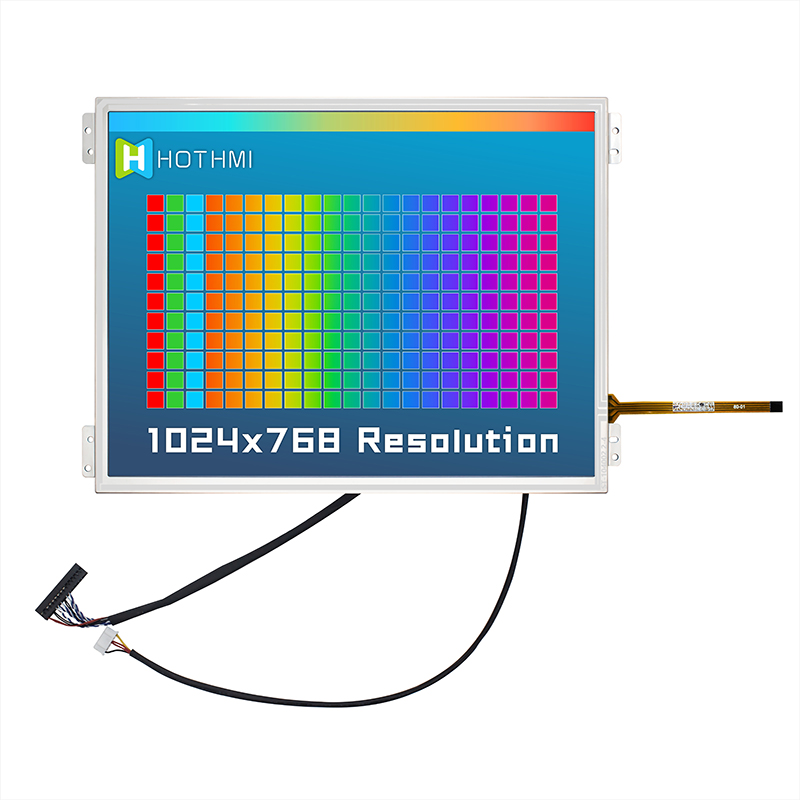

Featuring a high-resolution 1024x768 display, the TFT-104IA-36A delivers crisp and clear visuals, providing healthcare professionals with accurate and detailed information when using medical devices. The IPS technology ensures wide viewing angles and excellent color reproduction, allowing multiple users to view the screen without compromising image quality.

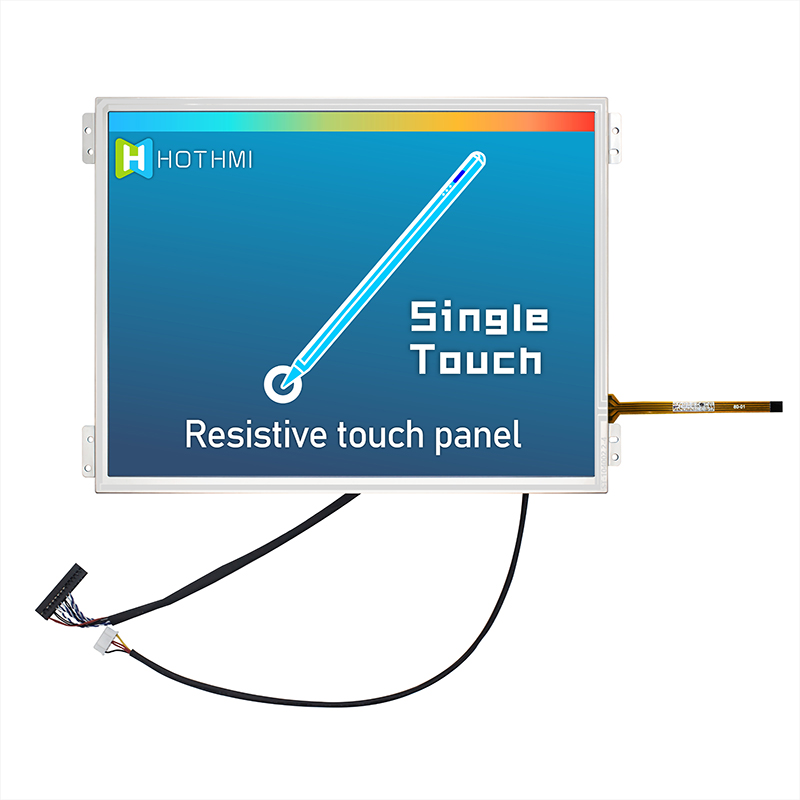

Designed with medical applications in mind, this TFT LCD Display comes equipped with a Resistive Touch interface. The touch functionality provides precise and responsive input, facilitating user interaction with medical devices effortlessly.
As a leading TFT LCD Display manufacturer, we have prioritized reliability and durability in the design of the TFT-104IA-36A. The panel's robust construction ensures it can withstand the rigors of a medical environment and frequent usage without compromising on performance.
The versatile RGB interface enables seamless integration with various medical devices, making it a perfect choice for modern medical equipment manufacturers looking to enhance their product offerings.
Whether used in patient monitoring devices, medical diagnostic equipment, or other medical applications, the TFT-104IA-36A promises to elevate the user experience and contribute to improved medical outcomes.
Choose our TFT-104IA-36A display panel for your medical devices and experience the perfect combination of superior technology, wide temperature functionality, and reliable performance. Empower your medical devices with the best-in-class display solution and ensure exceptional patient care and diagnostic accuracy.
