Since the ordinary TFT display screen is basically the FPC soft cable lead-out, it is connected to the customer's main board through soldering or socket, and some products also need to have peripheral component circuits to be used.
In order to facilitate the use of customers, Xin Hongtai HOTLCD has designed a TFT module with a fixed adapter plate structure. It is a TFT module that is transferred from the ordinary TFT display to the customer's motherboard by adding PCB. The advantage is that the structure is convenient and convenient. Soldering peripheral components and interface options can be connected to the customer's motherboard.
At present, there are 1.44 inch, 1.8 inch, 2.0 inch, 2.4 inch, 2.8 inch, 3.2 inch, 3.5 inch and other sizes for customers to choose, generally used in industrial equipment.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

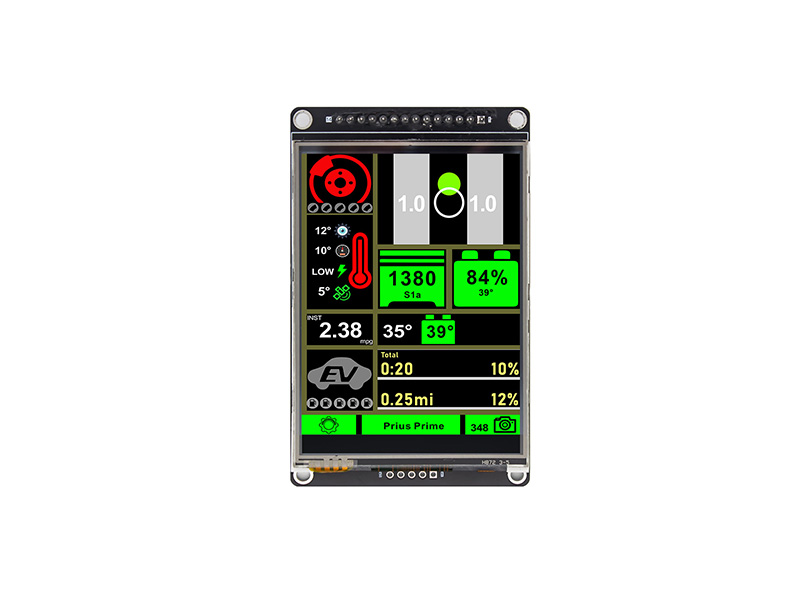

| 2.8 Inch TFT LCD Display With RTP For Arduino HTM-H028A1-MCU-V02 | TFT Module | 240x320 |
|
51.0x81.2x13.55 | 2.8 | 2.8 | 43.2x57.6 | IPS | 450cd/m2 | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7789V | ||

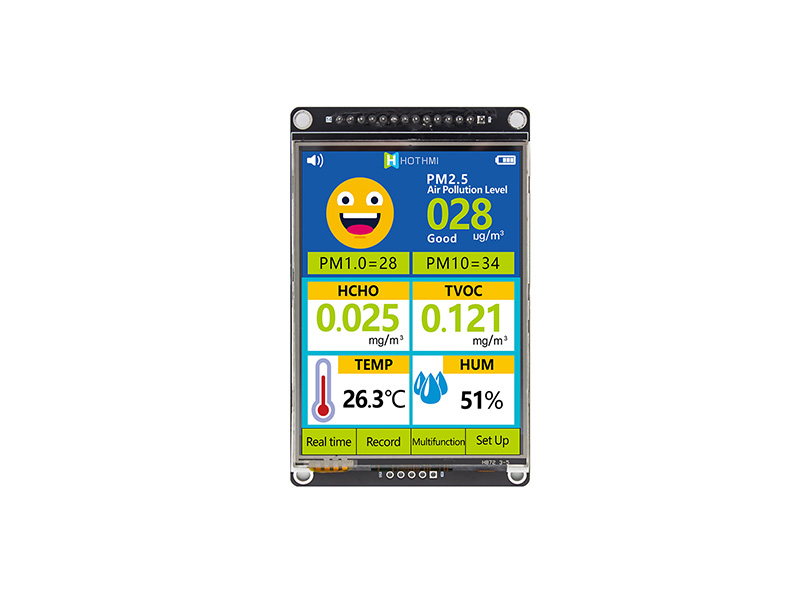

| 2.4 Inch Resistive Touchscreen TFT LCD Module With MCU Interface HTM-H024B25-MCU-V1 | TFT Module | 240x320 |
|
44.42x72.26x13.5 | 2.4 | 2.4 | 36.72x48.96 | IPS | 400cd/m2 | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7789 | ||
| 3.2 Inch TFT LCD Module | MCU Interface With ST7789 Driver IC With resistive touch HTM-H032A05-MCU-V1 | TFT Module | 240x320 |
|
56.0x89.70x13.71 | 3.2 | 3.2 | 48.6x64.8 | IPS | 450cd/m2 | MCU | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7789 | ||
| 3.2" IPS TFT LCD Display Module | SPI Interface With ST7789 With resistive touch HTM-H032A05-SPI-V1 | TFT Module | 240x320 |
|
56.0x89.70x13.81 | 3.2 | 3.2 | 48.6x64.8 | IPS | 450cd/m2 | SPI | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7789 | ||
| 3.5 Inch Resistive Touch Screen Display - TFT LCD with MCU Interface for Industrial Control HTM-H35A34-MCU-A01R | Character LCD Module | 240x320 |
|
77.9x64.9x17.01 | 3.5 | 3.5 | 70.08x52.56 | IPS | 300cd/m2 | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | |||
| 2.0"TFT LCD-240x320 resolution-SPI Interface with ST7789 Driver Board HTM-H020A6-SPI-V1 | TFT Module | 240x320 |
|
36.5x61.2x2.3 | 2.0 | 2.0 | 30.6x40.8 | IPS | 600cd/m2 | SPI | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7789 | ||
| 1.5 inch 240x240 Square TFT Modules with ST7789 driver board HTM-H015A2-SPI-V02 | TFT Module | 240x240 |
|
32x43.72x1.95 | 1.5 | 1.5 | 27.72x27.72 | IPS | 700cd/m2 | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7789 | ||
| 2.0" Sunlight Readable TFT LCD Module with ST7789 driver chip HTM-H020A05-SPI-V0 | TFT LCD Module | 170x320 |
|
29.4x60.0x1.9 | 2.0 | 2.0 | 22.7x42.72 | IPS | 700cd/m2 | Anti-static ESD 8KV | -20~70℃ | +3.3 | ST7789 | |||
| 1.7 inch 240x280 TFT LCD Display Modules with ST7789 Controller HTM-H017A05-SPI-V0 | TFT LCD Module | 240x280 |
|
31.0x48x1.6 | 1.7 | 1.7 | 27.97x32.63 | IPS | 500cd/M2 | Anti-static ESD 8KV | -20~70℃ | +3.3 | ST7789 | |||
| 1.7 inch TFT LCD Display Modules-128x160 ST7735S driver chip HTM-H017A3-SPI-V0 | TFT Module | 128x160 |
|
37.4x55.7x2.3 | 1.7 | 1.7 | 28.03x35.04 | 28.03x35.04 | 850cd/m2 | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7735S |
